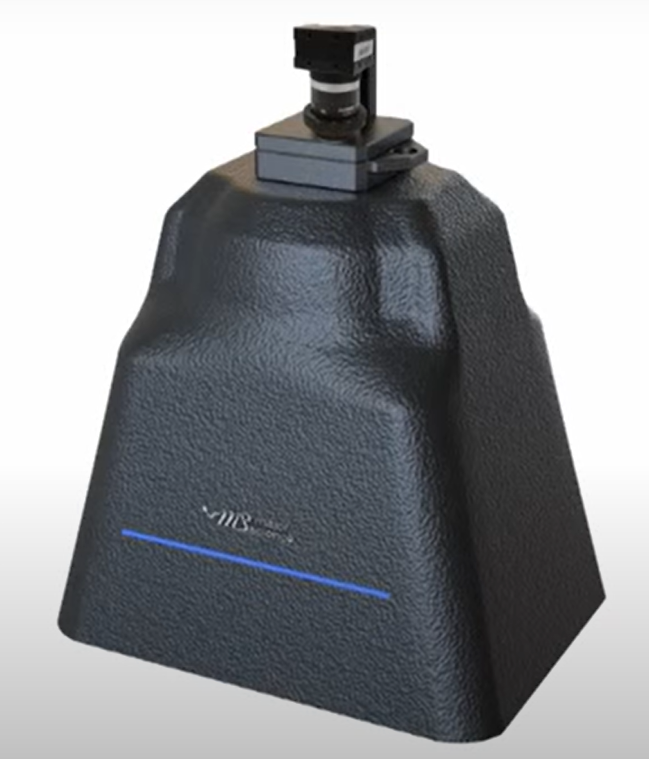

Major Science MUV-IMG-CM SmartView Simple Imager System (320 Imager System)

MUV-IMG-CM (SmartView simple 320 )

Camera: 5.0MP ,10bit scientific grade camera

Special featrures: Analysis software included

Aperture: 6mm, max. f/1.2

Shutter speed: 30 - 0.01 sec

Storage media: PC

Dimension (WxLxH): 9.29"x12.48"x16.38" (236x317x416mm)

Weight: Approx. 3.1lbs. ( 1.4kg)

Max. viewing size: 10.24"x8.27" (260x210mm)

Filter (camera): Optical EtBr Filter and SYBR Green Filter *Ordered separately (* iPad and PC not included.)

• UVCI-1000-EB: Optical EtBr Filter (620nm) for SmartView Pro & Simple Imager System

• UVCI-1000-SG: Optical SYBR Green Filter (520nm) for SmartView Pro & Simple Imager System

• MBE-IMG-F3: SmartView Amber Filter, 560nm

• MBE-IMG-F4: SmartView Amber Filter, 580nm

• MBE-201: Rubber Flap

Software support: Windows 10 / 8 / 7/(64 & 32bit)/XP/Vista

1 D analysis software: Cat. No. MEB-IMG-SW included

Major Science offers the SmartView Simple Imager System for your UV or blue light Transilluminator. This unit is designed extremely light in weight and compact in size.

For any lab with limited budget and lab space, the SmartView Simple Imager System is definitely the choice of selection. It is compatible with most transilluminators on the market. (for any maximum viewing size less than 260x210mm)
