Wavelength: 254nm
Filter Size: Approx. 8.3"x8.3" (210x210mm)
Light Source: 6 tubes, 8W/tube
Filter : Long life filter, High efficiency reflector
Intensity Switch: High (100%)/Low (70%) intensity switch for single wavelength mode
Fast Start Up: High quality starter to simultaneously illuminate tubes when switched on and no blink
UV Resistant Plastic Cover (WxL): Approx. 13"x9.8" (330x250mm)
Dimension (WxLxH): Approx. 13.4"x11.6"x3.9" (340x295x100mm)
Weight: Approx. 16.5lb (7.5kg)
Rated Voltage: 110V/220V~

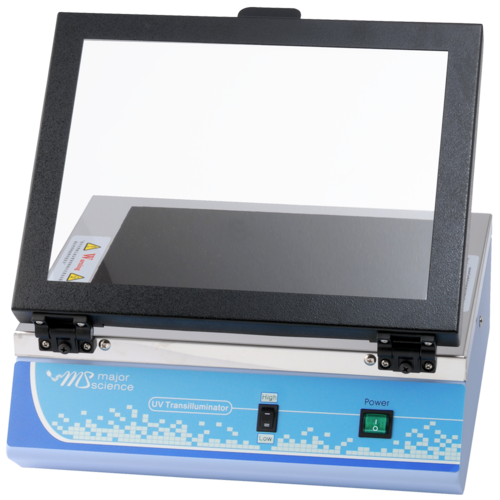

The bench-top UV Transilluminator series offers the researcher uniform and intense sources of ultraviolet light (radiation) with a compact footprint. Their special design emits either one or dual intensity excitation UV wavelengths for back-illumination of transparent fluorescent materials. 254nm, 312 (302)nm, 365nm, 254 & 365nm, and 254 & 312 (302)nm modes are available for different applications. There are two choices of filter size viewing dimensions, 260x210mm and 210x210mm for different user requirements. The 365nm mode is offered for easy view of gels under long wave for extended periods of time avoiding photo nicking damage. The 254nnm mode is used to irradiate samples. The 312 (302)nm mode is suggested for general gel operating. The single wavelength modes have a high intensity / low intensity switch equipped. All bench-top transilluminator modes are compact, lightweight and economical.
A high performance model, 312 (302)nm UV Transilluminator with a strong lighting and longer life time tubes, was introduced for demanding requirements.
