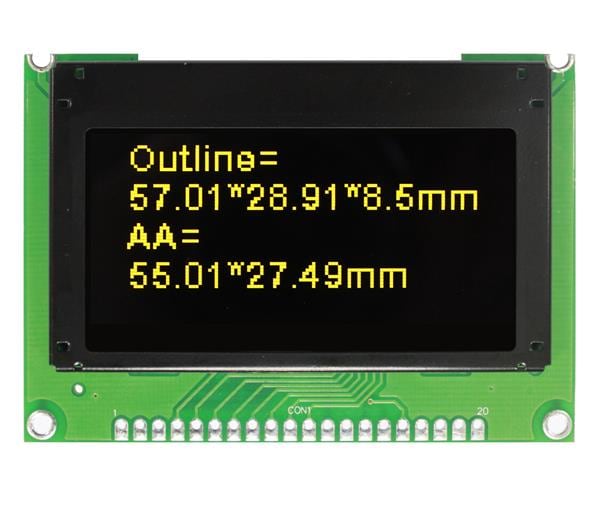

Microtips Technology REX012864JYPP3N00000 OLEDディスプレイ イエローOLED 128x64グラフィックディスプレイ

Width: 75 mm

Height: 52.7 mm

Thickness: 8.5 mm

Brightness: 80 cd/m2

Resolution: 128 x 64

Touch Panel: Without Touch Panel

Unit Weight: 95.585 g

Display Type: Graphic Display

Viewing Angle: 160 deg

Mounting Style: Screw Mount

Illumination Color: Yellow

Pixel Size - W x H: 0.4 mm x 0.4 mm

Viewing Area - W x H: 55.01 mm x 27.48 mm

Module Size - W x H x T: 75 mm x 52.7 mm x 8.5 mm

Operating Supply Current: 110 mA

Operating Supply Voltage: 3 V

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C
