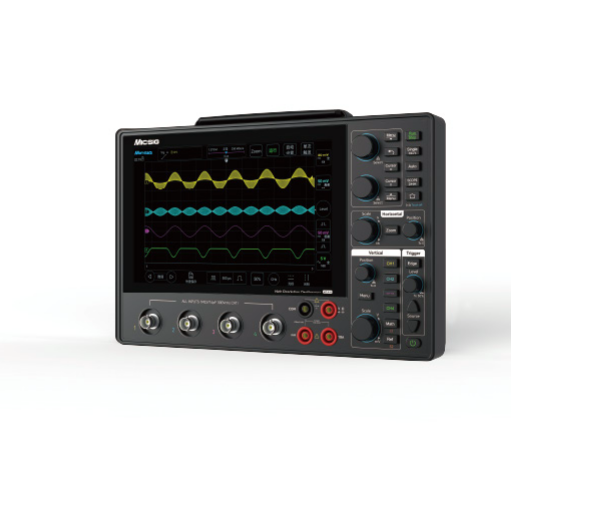

MICSIG MH014-100 High Resolution Tablet Oscilloscope (12bit,100MHz,4CH,1GSa/s,110Mpts)

Bandwidth: 100 MHz

Rise Time: ≤ 3.5 ns

Analog Channels: 4

Sampling Rate: 1 GSa/s

Memory Depth: 110 Mpts

Maximum Waveform Capture Rate: 50,000 wfms/s

Vertical Resolution: 12 bit

Interfaces: USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger Out

Display: 8" TFT LCD capacitive touch screen, 1280 × 800 pixels

Battery (Optional): 3.7 V, 16000 mAh Lithium-ion battery

Charging: Standard DC 12 V adapter, supports Type-C charging

Multifunction Meter Accuracy: 4½ digits

Dimensions / Net Weight: 265 × 174 × 31 mm (W × H × T) / 1.73 kg

Standard Accessories

Main unit *1

Passive Probe *4

Multimeter pen * 1 pair (Multimeter is not included in the model with the “N” symbol)

Power adapter *1

Power cord *1

Quick Guide *1

Battery (optional). Pre-installed if purchased
