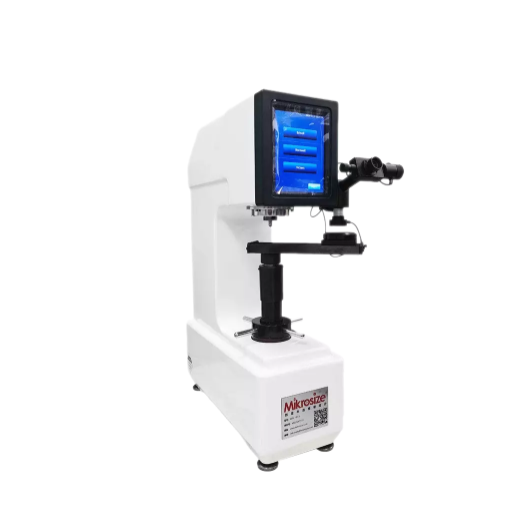

Mikrosize iBRRV-250 Digital Universal Hardness Tester (10kgf(98.07N), 3kgf(29.4N))

Initial Test Force: Rockwell: 10kgf(98.07N) , Superficial Rockwell: 3kgf(29.4N)

Total Test Force:

Rockwell：588.4, 980.7, 1471N (60, 100, 150Kgf)

Brinell：49, 98, 153.2, 306.5, 612.9, 1226, 1839, 2452N（5, 10, 15.625, 30, 31.25, 62.5, 125, 187.5, 250Kgf）

Vickers：49.03, 98.07, 196.1, 294.2, 490.3, 980.7N（5, 10, 20, 30, 50, 100, 120Kgf）

Force Error: ＜0.5%

Hardness Scale:

Rockwell：HRA, HRB, HRC, HRD, HRF, HRE, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV

Superficial Rockwell: HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y, HR15W, HR30W, HR45W

Brinell: HBW1/5 HBW1/10 HBW1/30 HBW2.5/15.625 HBW2.5/31.25 HBW2.5/62.5 HBW2.5/6.25 HBW2.5/187.5 HBW5/62.5 HBW5/125  HBW5/250  HBW10/100

Vickers：HV5, HV10, HV20, HV30, HV40, HV50, HV60, HV80, HV100, HV120

Knoop: HK3, HK5, HK10, HK20, HK30, HK40, HK50, HK60, HK80, HK100, HK120

Hardness Conversion Scale: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Hardness Range:

Rockwell：20-88HRA, 20-100HRB, 20-70HRC

Brinell：5-650HBW

Vickers：8-2900HV

Hardness Resolution: 0.1HBW, 0.1HR,0.1HV

Indication Accuracy: Brinell: ±2.5HB, Rockwell:±0.1HR, Vickers:±2 HV

Repeatability: Brinell:≤3.0HB, Rockwell: 0.5HR, Vickers: ≤2.5HV

Magnification:

Eyepiece: 15X,

Objective:2.5X(for Brinell), 5X(for Brinell and Vickers)10X(for Vickers)

Total Magnification:

Brinell:37.5X, 75X

Vickers: 75X,150X

Dwelling Time: 0～90s Adjustable

Test Throat: 160mm

Test Height: Rockwell 180mm；Brinell, Vickers165mm

Data Output: LCD display, U disk, Built-in mini printer

Power: AC110V/220V+5%, 50-60Hz

Machine Dimension: 550×230×750mm

Net Weight: 80kg

Gross Weight: 130kg

Standard Delivery：

Machine Mainframe: 1 set

Digital Micrometer Eyepiece: 1 pc

Microscope Stand (including internal lighting): 1 pc

External Lighting: 1 pc

2.5X, 5X, 10X Objectives: 1 pc ea.

Large Test Anvil, Medium Test Anvil, V-shape Test Anvil: 3 pcs

Slide Test Anvil: 1 set

Diamond Rockwell Indenter: 1 pc

Diamond Vickers Indenter: 1 pc

φ1.5875mm Carbide Ball Indenter: 1 pc

φ2.5mm, φ5mm Carbide Ball Indenter: 2 pcs

φ1.5875mm Carbide Ball Indenter: 5 pcs

Standard Rockwell Hardness Block: 5 pcs

Standard Vickers Hardness Block（HV30）: 1pc

Standard Brinell Hardness Block（HBW/2.5/187.5）:1 pc

Gradienter: 1 pc

Level Adjustment Screw: 4 pcs

Hexagon Wrench 1.5MM:1 pc

Power Cord: 1 pc

Fuse 2A: 2 pcs

Screwdriver: 1 pc

Anti-dust Cover:1 pc

Instruction Manual, Product Certificate, Warranty Card: 1 copy ea.

Optional Delivery：

Φ10mm Ball Indenter

Hardness Block 80~84HRA

Hardness Block 20~30HRC

Hardness Block 400~500HBW2.5/187.5

Hardness Block 35~55HRC

Hardness Block 400~500HV5

Hardness Block 60~70HRC

Hardness Block 20~30HRC

Hardness Block 88~100HRB

Hardness Block 20~30HRC
