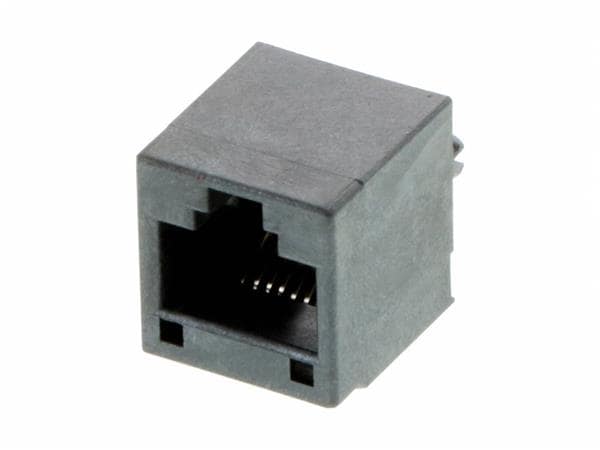

Molex 85506-5002 モジュラー高速トップエントリーDトップエントリージャックLC

Color: Black

Pitch: 1.02 mm

Gender: Jack (Female)

Shielding: Unshielded

USOC Codes: RJ45

Application: 10/100/1000 Base-T

Unit Weight: 3.620 g

Configuration: 1x1

Tab Direction: Top Entry

Current Rating: 1.5 A

Mounting Angle: Vertical

Mounting Style: Through Hole

Voltage Rating: 125 VDC

Contact Material: Tin

Termination Style: Solder

Flammability Rating: UL 94 V-0

Performance Category: Cat 5e

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
