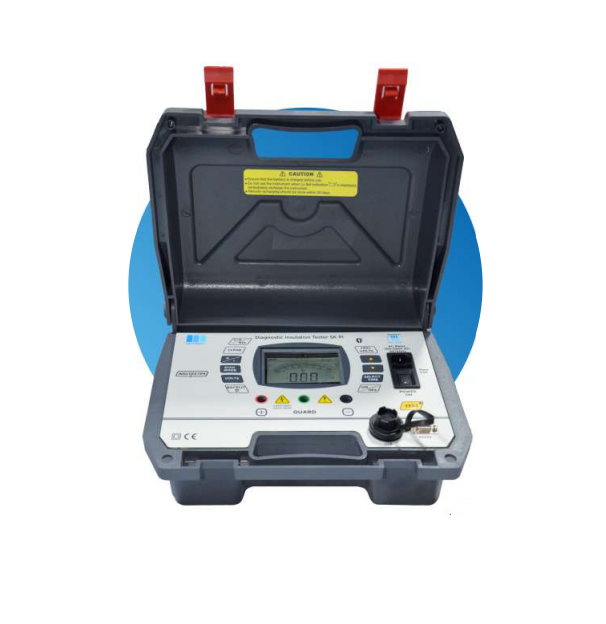

MOTWANE 10K PI 3mA Diagnostic Insulation Tester (3mA)

Test Specifications:

Diagnostic Modes: IR, PI, DAR, DD, SV, BDV, Burn

Test Voltage:

Programmable Test Voltage:  250V, 500V, 1000V, 2500V, 5000V, 7500V, 10000V

Lock Test Voltage: 250 - 1000V adjustable in steps of 10V, 1000 - 10000V adjustable in steps of 25V

Voltage Accuracy : ± (5% of reading + 5 digits)

Resistance Range :

Analog Display: 10KΩ - 10TΩ

Digital Display: 10KΩ - 20TΩ

Accuracy: 1 MΩ to 1 TΩ ± (5% of reading + 5 digits); 1 TΩ to 10 TΩ ± (10% of reading + 5 digits); 10 TΩ to 20 TΩ ± (20% of reading + 7 digits)

Guard Resistance: 2% error guarding <300KΩ

Short Circuit/Charge Current:

Short Circuit current: up to 3mA

Current Range: up to 3mA

Accuracy at 25°C at 10 KV: 3mA ± 0.7mA

AC/DC Voltage:

Voltmeter Range: 0 ~ 600 AC/DC

Voltmeter Accuracy: ±(8% of reading + 5 digits), input resistance: 250MΩ Approx

Capacitance Measurement:

Capacitor Discharge Time: ≤ 5 sec per μF

Capacitance Range: 1nF to 50μF

Capacitance Measurement Accuracy: ± (5% of readings + 5 nF)

Interference Rejection : 1mA RMS per 250V test voltage up to a max. of 4mA

Timer : Programmable timer from 0 sec to 99 minutes

Memory:  Internal data storage of 1000 readings

Interface : Galvanically isolated RS232 and USB ports; remote operation via PC using either RS232 or USB cable

Data Handling & Analysis Software : Operated on XP/Windows7/Windows8/Windows10/Windows11; Two way communication for remote operation; Report generation along with the graphical representation for Data Trending Analysis.

Power Supply:

Mains Input Voltage: 115V/230V RMS, Frequency 50/60 Hz

Battery Type: Battery Pack, Rechargeable 14.8V, 5200mAh, Li-Ion, Type 18650

Battery Life: 8 hours continuous testing at 10kV with a 250 MΩ load (approx)

Battery Charge Time: 8 hours approx. (95% Charged)

Auto Power Off: Instrument turns off after 10 minutes of non-use to conserve battery life

Environmental Condition:

Operating Temperature Range: -10°C to 55°C

Storage Temperature Range: -20°C to + 70°C.

Humidity: < 95% RH Non-Condensing

Safety :

Safety in accordance with EN61010-1

EMC in accordance with EN61326-1

Type test in accordance with IEC 60068

Test lead in accordance with IEC 61010-31

CE & CAT III 1000V & IV 600V, IP 65

Physical Specifications:

Dimensions: 190 mm X 285 mm X 365 mm (Approx.) (H x W x L)

Weight: 5 Kg (approx) (without accessories); 9.5 Kg (approx) (with accessories)

Accessories

Standard

3m Test lead Set (3mA) : 1 Set

10m Test lead Set (6mA) : 1 Set

Mains Power Cord : 1 Set

Mains Protected Fuse : 2 No.

RS232 Communication cable : 1 No.

Instruction Manual : 1 No.

Calibration Certificate : 1 No.

Carry Case : 1 No.

Pen Drive : 1 No.

USB 2.0 A/B Cable 1.5 mtr long : 1 No
