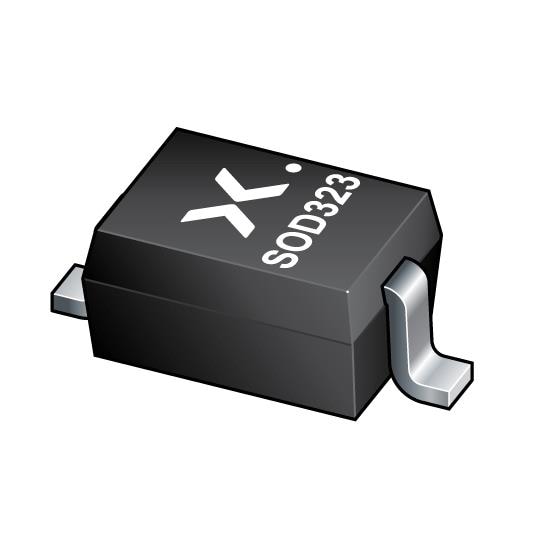

Nexperia BZX384-A8V2X ツェナーダイオード 電圧レギュレーターダイオード

Width: 1.35 mm

Height: 1.1 mm

Length: 1.8 mm

Test Current: 5 mA

Configuration: Single

Zener Current: 700 nA

Mounting Style: SMD/SMT

Voltage Tolerance: 1 %

Vz - Zener Voltage: 8.2 V

If - Forward Current: 100 mA

Ir - Reverse Current: 700 nA

Vf - Forward Voltage: 1.1 V

Pd - Power Dissipation: 300 mW

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 65 C

Voltage Temperature Coefficient: 3.2 mV/K to 6.2 mV/K

Ir - Maximum Reverse Leakage Current: 700 nA
