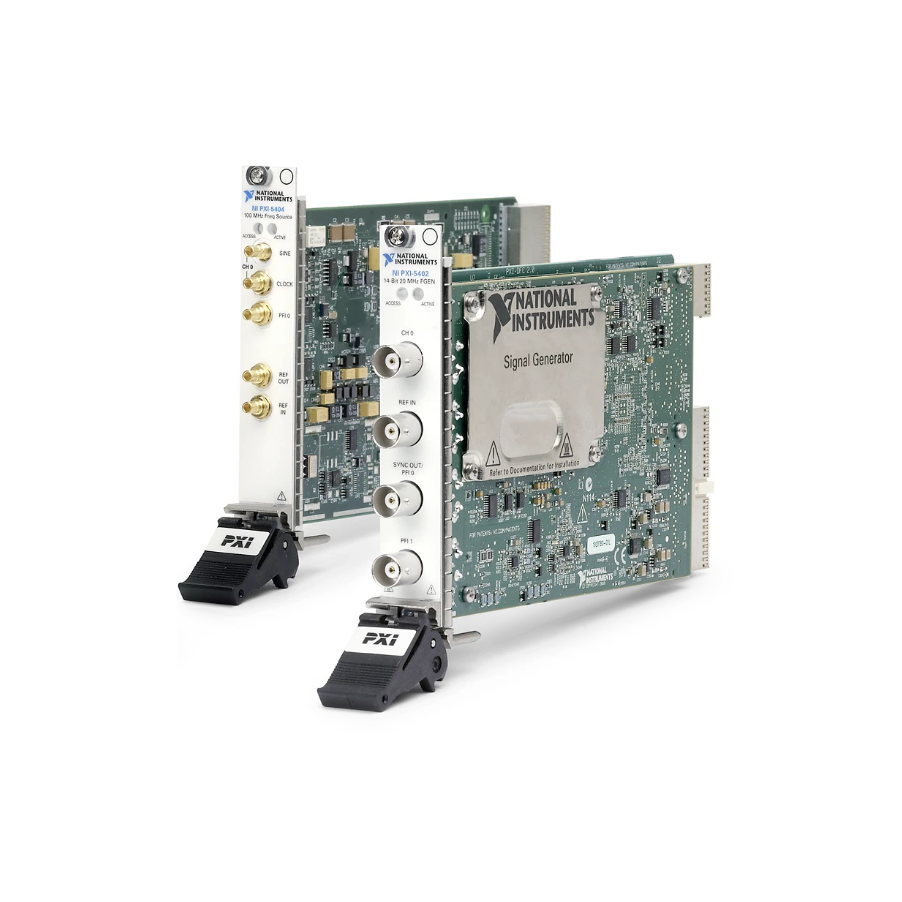

NI PXI-5402 PXI Waveform Generator (1-Channel, ±5V, 32 kB, 20 MHz)

Supports Scripting: No

Bus Connector: PXI Hybrid

Maximum Bandwidth: 20 MHz

Maximum Update Rate: 100 MS/s

Analog Output Resolution: 14 bits

Analog Output Voltage Range: -5 V to 5 V

Analog Output Onboard Memory Size: 32 kB

Number of Output Channels: 1

Supports Arbitrary Waveforms: No

RF Signal Generation: No

Supports Digital Upconversion: No

Generates standard functions and user-defined, arbitrary waveforms as part of a PXI system.

PXI Waveform Generators can produce precise waveforms including sine, square, triangle, and ramp as well as arbitrary, user-defined waveforms using sequences of data or streaming continuously from a host or peer-to-peer instrument within the PXI system. These instruments are ideal for tightly synchronized, mixed-signal test systems in scientific research or test of semiconductor devices, consumer electronics, automotive, and aerospace/defense.
