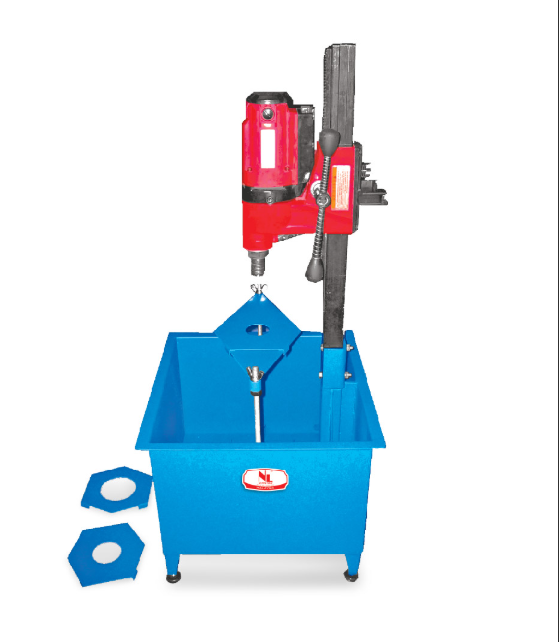

NL Scientific NL 1006 X / 001 Laboratory Coring Machine (750 r.p.m., 400 mm, Ø 130 mm)

Tank Dimension (mm): 800 (L) x 700 (W) x 540 (H)

Maximum Coring: Ø 130 mm

Stroke Length: 400 mm

Speed: 750 r.p.m.

Approx. Weight: 70 kg

Power: 240 V, 1 ph, 50 / 60 Hz, 1000 W

Unit Consists Of :

NL 1006 X / 001 – P 001 Water Tank with Drain Valve c/w 1no.

Clamping Device 1unit

NL 4006 X / 002 Coring Machine 1no.

*1 Copy of Manual Instruction

Features:

Drilling Mechanism that can penetrate through hardened materials, such as concrete, asphalt, rock, or soil.

Core Collection System to securely capture and extract cylindrical samples (cores) from the drilled material.

Accuracy and Precision drilling results, ensuring consistency in core dimensions and quality for reliable testing outcomes.

Safety Features such as emergency stop buttons, protective shields, and automatic shit-off mechanisms to prevent accidents and ensure operator safety during operation.

Control Panel with a user-friendly interface for adjusting drilling speed, pressure, and depth.
