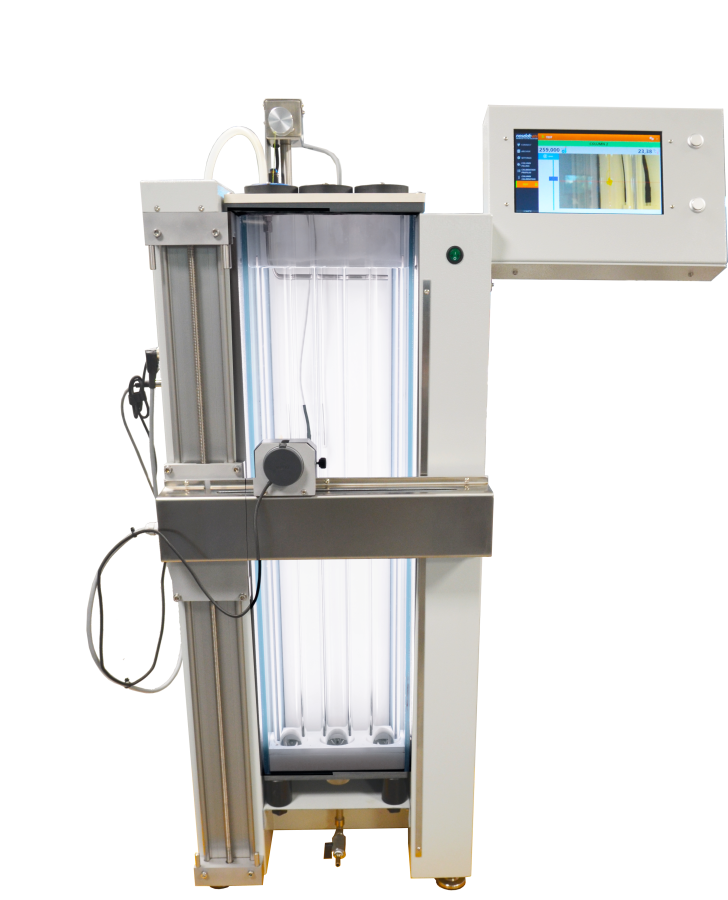

Lexan-PVC bath capacity 18 litres
Two or three columns 850 mm length, 55 mm Ø, basic configuration
Touch screen display 9” for control apparatus
Integrated system for circulating the water flow inside the tank
Integrated system heating and cooling for the autonomous management of the tank temperature with room temperature from 15°C to 27°C, heating 10°C/h, cooling 3°C/h, without external systems
Possibility of connection to an auxiliary cooling system, such as chiller or open system, particularly in hot environments or to accelerate the reaching of the set temperature
Camera for viewing measurement points on the display
Automatic detection of the column measurement height (±10 microns) via encoder
Management of calibration curves with up to 24 calibration spheres each
Possibility of video recording of the entire column for post-processing of the data
Buttons for manual movement of the Y axis
Drain system at the bottom of the column for easy emptying
Double LED strips for optimal lighting
Overall dimensions 380 x 780 x 1220 h mm
Weight 85 kg
Power supply 230 V – 50 Hz – 2 kVA monophase
Standards
ASTM D1505
ISO 1183-2
