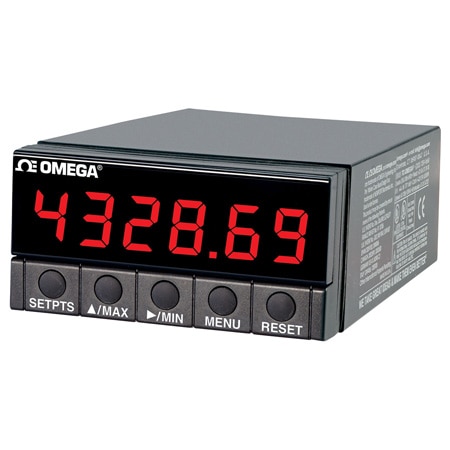

OMEGA DP41-E-230-A 1/8 DIN 高性能温度・プロセス・ひずみ計 (Current, Voltage, 6 Digit Single LED, 230 Vac)

Width: 96 mm

Height: 48 mm

Length: 165 mm

Weight: 574 g

Accuracy: ± 0.005 %

Polarity: Unipolar/Bipolar, programmable

Setpoint: 4 isolated open collector; rated 150 mA at 1V sink, 30V open

Input Type: Current, Voltage

Resolution: 15-bit

Form factor: 1/8 DIN

Display Size: 13.7 mm (0.54 in)

Display Type: 6 Digit Single LED

Reading Rate: 3/s or 13/s, 60 Hz; 3/s or 12/s, 50 Hz

Display Color: Red, Green

Output Detail: Isolated, tri-state, TTL/CMOS compatible; external 5V supply required for isolated; internal 5V supply for non-isolated

Sampling Rate: 13 Hz (13 updates/second)

Step Response: 1 sec to 99.9%

A/D Conversion: Dual-slope technique

Control Output: None

Data Interface: N/A

Supply Voltage: 230 Vac

supply-voltage: 230 Vac

Input Type Note: Analog Current/Voltage

Span Adjustment: 0.00001 to 500,000 counts, programmable

Number of Inputs: 1

Cutout Dimensions: 45 x 92 mm

Display Type Note: Red or green 6-digit, 14-segment, 13.7 mm (0.54") high; 4 alarm indicators

Enclosure Ratings: IP65, NEMA Type 4

Offset Adjustment: 0 to 999,999 or 0 to -99,999, programmable

Power Consumption: 10 W

Relative Humidity: 95% RH, non-condensing

Supply Power Note: 115 or 230 Vac, 49 to 400 Hz; 10 to 32 Vdc

Supply Power Type: AC

Common Mode Voltage: 1500 Vp per HV test

Input Configuration: Single-ended

Thermal Span Effect: ±20 ppm

Common Mode Rejection: 120 dB

Normal Mode Rejection: 60 dB

Output Configurations: Analog Current/Voltage

Power Consumption Note: 6 W nom., 10 W max

Sensor Break Protection: Up-scale or down-scale, programmable

Sensor/Transmitter Power: 10 V at 30 mA; 24V at 25 mA

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -40 °C

Current Measurement Range: 0 to 20 mA, 4 to 20 mA

Voltage Measurement Range: 43 to 100 mV, 0 to 1V, 0 to 5V, 1 to 5V, 0 to 10V, 0 to 100V, ±50 mV, ±500 mV, ±5V, ±50V

Warm-Up to Rated Accuracy: 50 min

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C

Output Configurations Note: 0 to 5V/1 to 5V/ 0 to 10V/0 to 20 mA/4 to 20 mA, user selectable; 354 Vp isolation; 15-bit resolution; 0.1% accuracy; 50 ms step response
