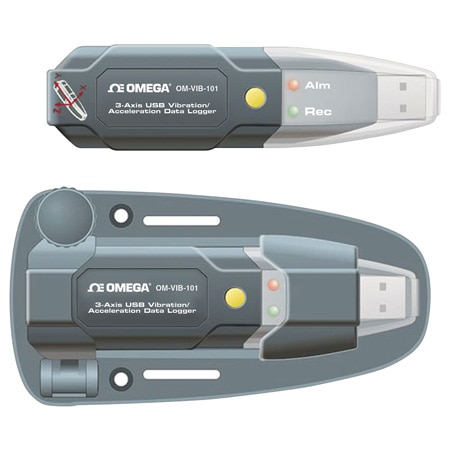

OMEGA OM-VIB-101 3軸USB振動・加速度データロガー (Vibration, Acceleration)

Width: 32.5 mm

Height: 54 mm

Length: 113 mm

Memory: 327600 Data Points

Weight: 73.5 g

Software: Windows XP SP3 / Vista / 7 and 8 (32 and 64 - bit)

Memory Note: 327,600 data points in 16 MB flash memory

Pressure, Max: 0 psi

Sampling Rate: 20 Hz (20 updates/second)

Data Interface: USB

Humidity Range: 5 to 95% RH

LED Indicators: Red and Green LEDs Indicate Device Status (Recording, Not Recording, Low Battery, Memory Full)

Millivolt Range: N/A

Measurement Type: Vibration, Acceleration

Supply Power Type: Battery

Acceleration Range: ± 16 g

Frequency Response: 0 to 60 Hz

Sampling Rate Note: 50 ms to 24 hours

Calibration Accuracy: Accelerometer : ±0.5 g

Battery Size and Type: 3.6V Li-ion

Number of Measurements: 3

Operating Temperature, Max: 45 °C

Operating Temperature, Min: 0 °C

Datasheet
