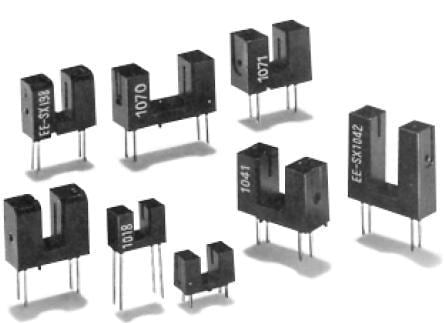

Omron Electronics EE-SX1025 光スイッチ、透過型、フォトトランジスタ出力 TRANS PHTOTRANSISTOR

Fall Time: 4 us

Rise Time: 4 us

Slot Width: 2.8 mm

Wavelength: 940 nm

Output Type: Phototransistor

Unit Weight: 467.500 mg

REACH - SVHC: Details

Aperture Width: 0.5 mm

Mounting Style: Through Hole

Sensing Method: Transmissive, Slotted

Sensing Distance: 2.8 mm

Termination Style: PCB

If - Forward Current: 50 mA

Vf - Forward Voltage: 1.2 V

Vr - Reverse Voltage: 4 V

Pd - Power Dissipation: 100 mW

Maximum Collector Current: 20 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C

Collector- Emitter Voltage VCEO Max: 30 V
