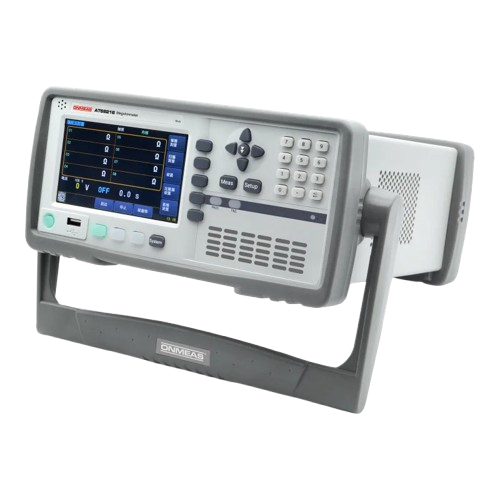

ONMEAS AT68216 Multi-Channel Insulation Resistance Tester (16 CH; 10V ~ 1000VDC; 0.000M ~ 19.99GΩ)

Leakage Current & Insulation Resistance Measurement

Number of Channels: 16 Channels

Measurement Parameters: Insulation Resistance

Output Voltage: Programmable 10V ~ 1000VDC

Basic Accuracy: 2%

Test Range: 0.000M ~ 19.99GΩ

Reading: 9999

Range: Auto and Manual

Test Speed: 30 times/sec

Correction: Full Range Open Circuit Zeroing

Display Result: Direct Reading, Current, Resistance, Peak and Sorting Results

Charging Timer: 0.1S~999.9S

Charging Current: 1.8mA

Comparator: OK: Pass, NG LO: Lower Fail, NG HI: Upper Fail

Instrument Size: 316(L) × 294(W) × 130(H) mm

Net Weight: 4kg

Power Requirements: AC 100V~240V, Power: 20VA

Interface: Handler interface, RS232 interface, USB interface, RS485 interface
