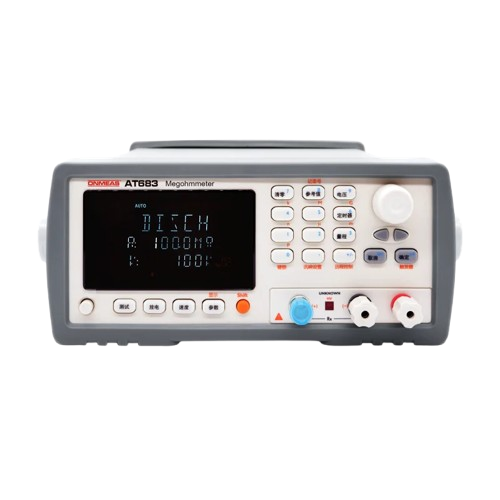

ONMEAS AT683 Insulation Resistance Tester (1V~1000V; 100k-10TΩ (10⁵~10¹³Ω))

Leakage Current & Insulation Resistance Measurement

Number of Channels: Single Channel

Measurement Parameters: Leakage Current and Insulation Resistance

Output Voltage: Programmable 1V~1000VDC

Basic Accuracy: 100kΩ~10TΩ (10⁵~10¹³Ω); 10V: 100kΩ~100GΩ; 100V: 1MΩ~1TΩ; 1000V: 10MΩ~10TΩ

Test Range: Slow Range: Resistance: <1M: 5%, ≥1M: 1%, ≥1G: 3%, ≥10G: 5%, ≥1T: 10%

Reading: 9999

Range: Auto and Manual

Test Speed: 55 times/s, 15 times/s, 3 times/s

Correction: Full-range open circuit zeroing

Display Result: Direct reading, current, resistance, peak value and sorting results

Charging Timer: 999.9s

Charging Current: 10mA MAX, Accuracy 2%

Comparator: 30 sets of records, GD/NG audible alarm: GD, NG, Off settings

Instrument Size: 264(W) x 107(H) x 350(D) mm

Net Weight: 5kg

Power Requirements: 198VAC~240VAC

Interface: RS-232C Interface, Handler Interface
