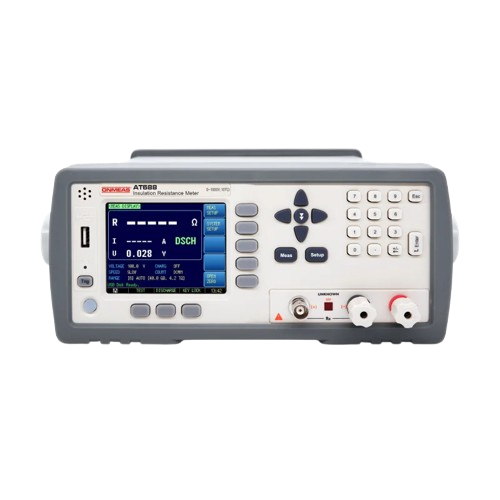

ONMEAS AT688 Insulation Resistance Tester (1V~1000V; 100kΩ~10TΩ)

Leakage Current & Insulation Resistance Measurement

Number of Channels: Single Channel

Measurement Parameters: Insulation Resistance and Leakage Current

Output Voltage: Programmable 1V~1000VDC

Basic Accuracy: 100kΩ~10TΩ

Test Range: <10G: 3%, ≥10G: 5%, ≥100G: 10%

Reading: 9999

Range: Auto, Manual and Nominal

Test Speed: 55 times/s, 25 times/s, 3 times/s

Correction: Full-range open circuit zeroing

Display Result: Direct reading, current, resistance and sorting results

Charging Timer: 999.9s

Charging Current: 10mA, Accuracy 2%

Comparator: OK/NG

Instrument Size: 264(W) x 107(H) x 350(D) mm

Net Weight: 5kg

Power Requirements: Voltage: 198VAC~242VAC, Frequency: 50Hz/60Hz, Power: 30VA

Interface: RS-232C/Handler/USB
