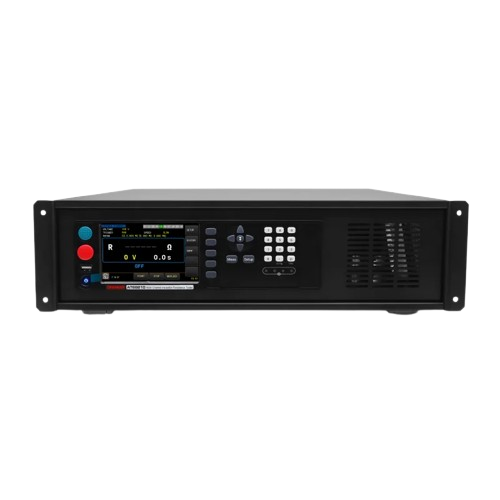

ONMEAS AT69210 Multi-Channel Parallel Insulation Resistance Tester (10V~1000V; 20GΩ)

Leakage Current & Insulation Resistance Measurement

Number of Channels: 10 Channels (Parallel Test)

Measurement Parameters: Parallel Insulation Resistance

Output Voltage: Programmable 10V ~ 1000VDC

Basic Accuracy: 2%

Test Range: 0.000M ~ 20.00GΩ

Reading: 9999

Range: Auto, Manual and Nominal Range

Test Speed: 30 times/sec

Correction: Full Range Open Circuit Zeroing

Display Result: Voltage, Resistance and Sorting Results

Charging Timer: 0.1S~60S

Charging Current: ≈1.8mA

Comparator: HI (Upper Fail), LO (Lower Fail) and OK (Pass)

Instrument Size: 371(L) x 485(W) x 129(H) mm

Net Weight: 5kg

Power Requirements: AC: 100V~240V, Power: 20VA

Interface: RS232 Interface, LAN Interface, RS485 Interface
