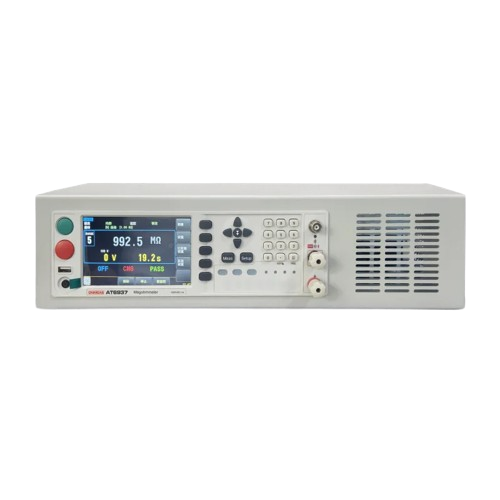

ONMEAS AT6937 Insulation Resistance Tester (1 CH; 500W; 25V, .., 1000VDC)

Number of Channels: 1 Channel (Test power: 500W)

Measurement Parameters: Insulation Resistance

Output Voltage: 25V (Custom), 50V (Custom), 100V, 250V, 350V, 400V, 500V, 600V, 750V, 800V, 900V, 1000VDC

Basic Accuracy: 100kΩ~1TΩ (Customizable 25kΩ/50kΩ~1TΩ)

Test Range: Within slow range, Resistance: <1G: ±1%, ≥1G: ±3%, ≥10G: ±5%, ≥10G: ±10%

Reading: 9999

Range: Auto and Manual

Test Speed: 55 readings/s, 15 readings/s, 3 readings/s

Correction: Full range open circuit zeroing

Display Result: Direct reading, current, resistance, peak value and sorting result

Charging Current: 0.5A max

Comparator: 1 set of records, HI/LO failure alarm

Instrument Size: 445mm(W) x 129mm(H) x 351mm(D)

Net Weight: 8kg

Power Requirements: Voltage: 198VAC~240VAC, Frequency: 50Hz, Power: 200VA

Interface: RS-232C, RS-485, TYPE-C, Handler, LAN, USB
