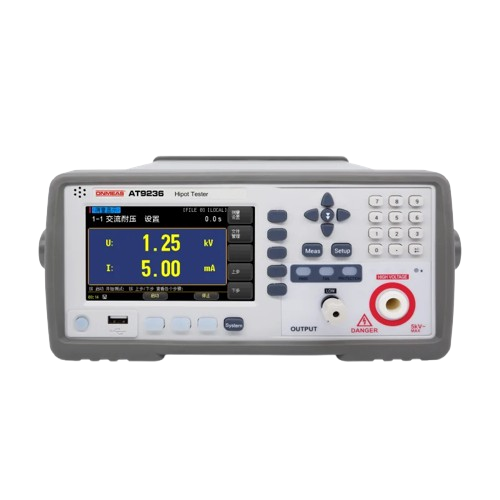

ONMEAS AT9236 AC/DC Withstanding Voltage & Insulation Resistance Tester (AC 5.000kV / 100mA; DC 6kV / 50mA; DC 2.5kV / 9999MΩ)

Test Functions: AC Withstanding, DC Withstanding, Insulation Resistance

Interface: USB-HOST, RS232/RS485, HANDLER, Alarm Output, External Remote Control

Standard Configuration: 5kV, 100mA, 500VA

AC Withstanding Voltage

Rated Output: AC 5.000kV / 100mA

Voltage Measurement: 0.10 - 5.00 kV Resolution: 0.01kV

Voltage Measurement Accuracy: 1.5% of Reading + 1 count

Measurement Current: 0.000 - 3.500 / 3.00 - 100.00 mA Resolution: 0.001 / 0.01 mA

Current Accuracy: 2% of Reading + 5 counts

DC Withstanding Voltage

Rated Output: DC 6kV / 50mA

Current Measurement: 0.0 - 350.0 / 300 - 3500 / 3000 - 9999 μA / 50mA Resolution: 0.1 / 1 / 10 μA / 0.01 mA

Insulation Resistance

Rated Output: DC 2.5kV / 9999MΩ

Measurement Range: 1MΩ - 9999MΩ, Resolution: 1MΩ

Instrument Dimensions: 246mm (W) × 112mm (H) × 536mm (D)

Net Weight: 20kg

Power Requirements: Voltage: 220VAC, Frequency: 50Hz/60Hz, Power: 550VA
