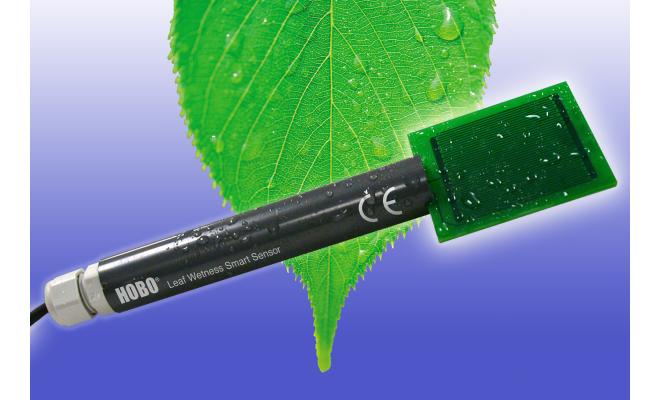

Onset S-LWA-M003 Leaf Wetness Smart Sensor (0~100%)

Measurement range: 0 (dry) to 100% (wet)

Operating range: -40°C to 70°C, (-40°F to 158°F)

Repeatability: ± 5%

Resolution: 0.59%

Stability: < ± 5% per year

Interchangeability between sensors (over the range 10-90%): ± 10%

Measurement averaging option: No

Housing: No coating required

Sensor type: Capacitive Grid

Dimensions:

  Sensor plate: 4.7 cm x 5.1 cm (1.8” x 2.0”)

  Tube: 12.2 cm length x 1.8 cm diameter (4.8” x 0.7”)

Cable length: 3m (9.8’)

Length of Smart Sensor Network Cable: 3m

Approximate weight: 127 g (4.5 oz) for sensor, and 290 g (10.2 oz) with mounting bracket

Mounting bracket: 20 cm long (8”); Sensor can be positioned at any angle between 0 and 90 degrees (vertical)

Number of data channels: 1

Items Included:

  Mounting bracket

  U-bolt

  Tie wraps

Manual
