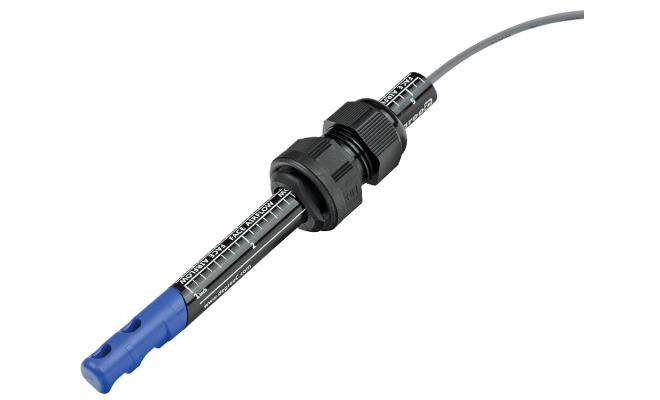

Onset T-DCI-F300-1C3 Air Velocity and Temperature Sensor (1~20 m/s)

Operating temperature range: 0°C to 60°C (32°F to 140°F)

Velocity range: 1.0 to 20 m/s (200 to 4,000 fpm)

Response time: 400ms

Storage temperature: -40°C to 105°C (-40°F - 220°F)

Relative humidity (non-condensing): 5-95%

Supply power requirements: 4.5-15 VDC, 35mA nominal

Velocity Output: 0-5V

Temperature output: 0-5V

Plenum rated cable: 22 AWG

Accuracy: ± (5% of reading + 0.15 m/s [30 fpm])

Sensor Length: 152mm [6.0”]

Max insertion depth: 110 mm [4.3”]

For use with HOBO H22, U30, UX120-006M, MX1104, MX1105, and RX3000 loggers or stations
