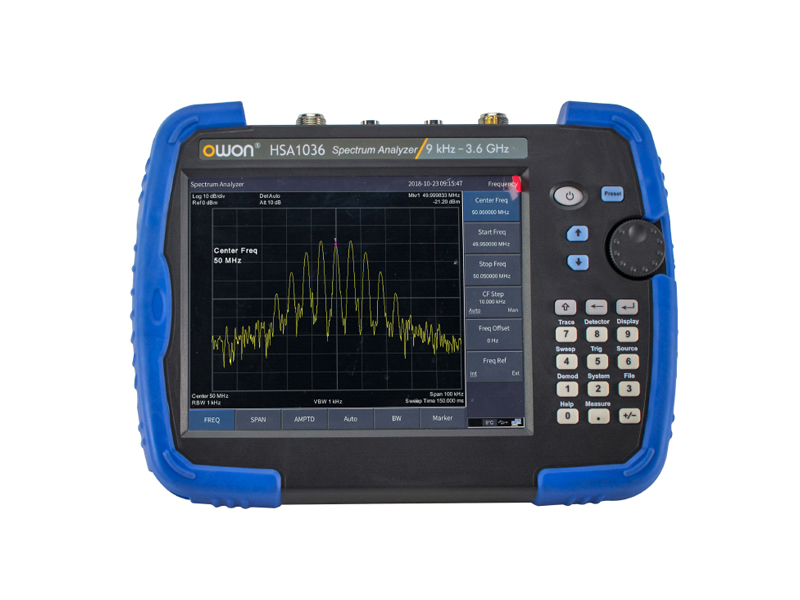

OWON HSA015-TG Handheld Spectrum Analyzer (9 kHz to 1.500009 GHz)

Frequency Range: 9 kHz to 1.500009 GHz

Frequency Resolution: 1 Hz

Frequency Span:

Span Range: 0 Hz, 100 Hz to max frequency of instrument

Span Uncertainty: ± span / (sweep points-1)

SSB Phase Noise (20℃ to 30℃,fc=1 GHz, RBW=1 kHz,VBW=1 kHz)

Carrier Offset:

10 kHz: < -80 dBc/Hz (Typical)

100 kHz: < -100 dBc/Hz (Typical)

1 MHz: < -107 dBc/Hz (Typical)

Bandwidth:

Resolution Bandwidth: 10 Hz to 500 kHz (1-10 steps by sequence), 1 MHz, 3 MHz

RBW Accuracy: < 5%, typical (RBW ≤ 1 MHz)

Resolutio Filter Shape Factor (60 dB : 3 dB): <5: 1 typical (digital and close to Gaussian shape)

Video Bandwidth (VBW): 10 Hz to 3 MHz

Amplitude and level:

Amplitude measurement range: DANL to +20 dBm, 1 MHz to 3.6 GHz, Preamp Off

Reference Level: -80 dBm to +30 dBm, 0.1dBm by step

Preamp: 20 dB, nominal, 9 kHz to 3.6 GHz

Input Attenuator Range: 0 to 40 dB, in 1 dB step

Display Average Noise Level  (Input Attenuation= 0 dB, Sample Detector ,Trace Average ≥20, 20℃ to 30℃,Input Impedance=50 Ω ,RBW normalizes to 1Hz)

Preamp Off:

1 MHz to 1 GHz: -140 dBm (Typical), <-130 dBm

1 GHz to 1.5 GHz

Preamp On:

1 MHz to 1 GHz: -160 dBm (Typical), <-150 dBm

1 GHz to 1.5 GHz

Frequency response (20℃ to 30℃, 30% to 70% relative humidity, input attenuation=20 dB, reference frequency=50 MHz)

Preamp Off (fc≥100K): ±0.8 dB；±0.4 dB (Typical)

Preamp On (fc≥1 MHz): ±0.9 dB；±0.5 dB (Typical)

Difference and Accuracy:

Absolute Amplitude Accuracy:

20℃ to 30℃, fc=50 MHz, Span=200 kHz, RBW=10 kHz, VBW=10 kHz, peak detector, 10 dB RF attenuation,95% confidence level

Preamp Off ±0.4 dB, input signal level -20 dBm

Preamp On ±0.5 dB, input signal level -40 dBm

Tracking Source Output, signal generator:

Frequency Range: 100 kHz to 1.5 GHz (Tracking Source Output)

Output power level range: -30 dBm to 0 dBm

Output power level resolution: 1 dB

Output flatness: ± 3 dB

USB

USB Host

Connector:  A Plug

Protocol: USB 2.0 (Host End)

USB Device:

Connector: Micro USB

Protocol: 2.0 Version

Display:

Type: TFT LCD

Resolution: 1024*768

Size: 8 inches

Color: 65536

Remote Control:

USB: USB TMC

LAN: 10/100 Base, RJ-45

Appearance:

Dimensions: 265 mm (W) × 190 mm (H) × 58 mm (D)

Weight: Approx. 2.5 kg (without package)
