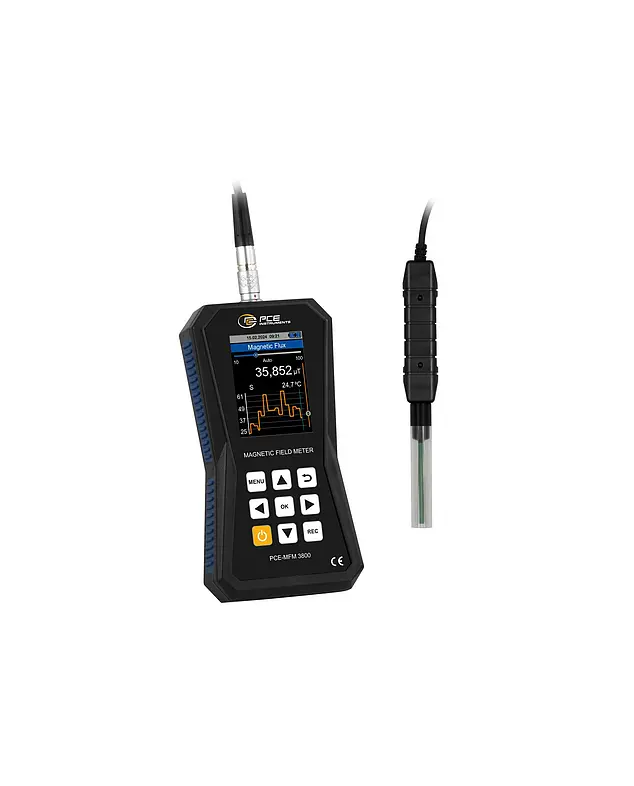

PCE PCE-MFM 3800 Electromagnetic Field Meter (10~3500 mT, -3500~+3500 mT)

Magnetic field AC

Measuring range: 10 ... 3500 mT

Resolution: 0.01 mT

Accuracy :

0 … 2400 mT: ±1% of reading

2400 … 3500 mT: ±3% of reading

Frequency range: 10 ... 50 Hz

Magnetic field DC

Measuring range: -3500 ... +3500 mT

Resolution: 0.01 mT

Accuracy:

0 … 2400 mT: ±1% of reading

2400 … 3500 mT: ±3% of reading

Temperature

Measuring range: 0 ... 80 °C

Resolution: 0.1 °C

Accuracy: ±0.4°C

Temperature

Measuring range: 32 ... 176 °F

Resolution: 0.18 °F

Accuracy: ±0.72°F

Sensor

Cable length: 140 cm

Additional description: Tripod thread: 1/4 inch

Dimension: Shaft: 57 × 4 × 1.7 mm (L × W × H)

General technical data

Measuring functions: HOLD, MAX, Average value

Units: mT, g, Oe, WB/m², kA/m, A/cm

Measuring direction: transversal

Display type: LCD with backlight

Display size: 2.8 in

Storage medium: Internal memory

Storage capacity: 100 Measurements

Storage interval from: 1 s

Storage interval to : 24 h

Interface: USB-C

Operating time: 24 h

Operating time additional information: depending on screen brightness and data logger usage

Automatic power-off from...to: 1 ... 15 min.

Menu language: German, English (GB), English, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Danish, Japanese

Protection class (device) : IP52

Power supply : USB 5 V DC, 500 mA

(Rechargeable) battery : 1 x 3,7 V internal , Lithium polymer battery

Capacity: 2500 mAh

Operating conditions: -20 ... 65 °C , 10 ... 95 % RH

Storage conditions: -20 ... 65 °C , 10 ... 95 % RH

Dimensions ( L x W x H ): 168 x 85 x 32 mm

Weight: 248 g
