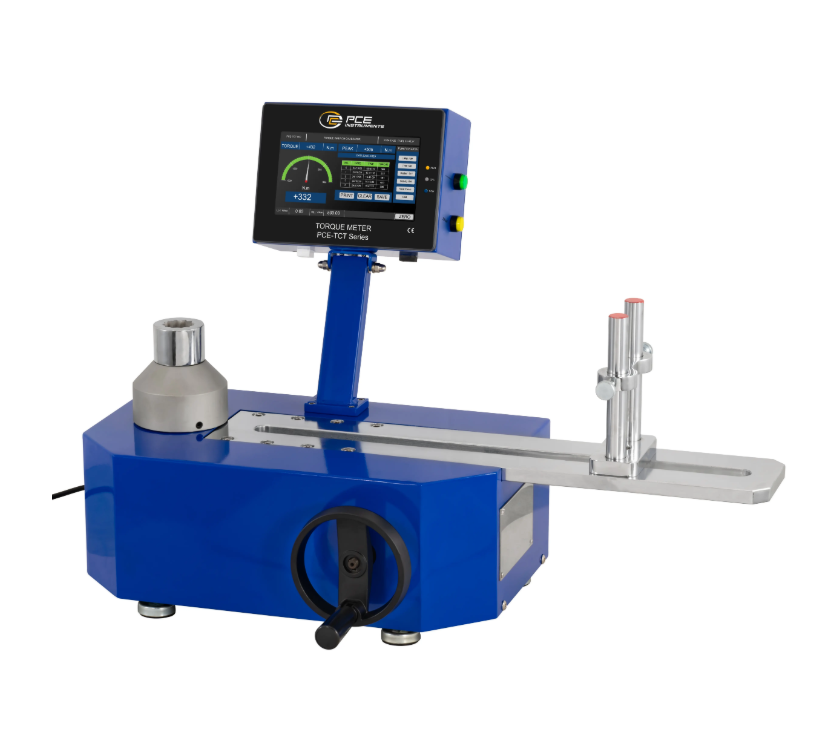

PCE PCE-TCT 500 Material tester (500 Nm; 5105.2 kgfcm; 4431.1 lbf-in)

Torque

Measurement range up to:  0.01 ... 500Nm

Resolution:  0.01 Nm

Accuracy:  ±0.01 % of Rd

Torque

Measurement range up to:  0.1 ... 5105.2 kgfcm

Resolution:  0.1 kgfcm

Accuracy:  ±0.01 % of Rd

Torque

Measurement range up to:  0.1 ... 4432.2 lbf-in

Resolution:  0.1 lbf-in

Accuracy:  ±0.01 % of Rd

General technical data

Storage medium:  Internal memory

Storage capacity:  999 Data records

Interface:  USB, RJ45

Alarm:  optical, Acoustic

Alarm modes:  lower limit, upper limit

Dimensions:  Length range: 130... 750 mm

Angle of rotation: 0 ... 60°

Max. lifting height: 130mm

Menu language:  English (GB), English, Chinese

Protection class (device):  IP20

Power supply:  220 V AC | 50 Hz

Connector type:  Schuko plug

Operating conditions: -10 ... 40 °C , 0 ... 90 % RH

Storage conditions:  -10 ... 40 °C , 0 ... 90 % RH

Dimensions ( L x W x H ):  730 x 400 x 500 mm

Weight:  47.8 kg

Delivery Scope

1 x Material Tester  PCE-TCT 500

1 x multi-tooth adaptor

1 x 1/4" adaptor

1 x 3/8" adaptor

1 x 1/2" adaptor

1 x open-end wrench 17/19

1 x Allen key

1 x IEC cable
