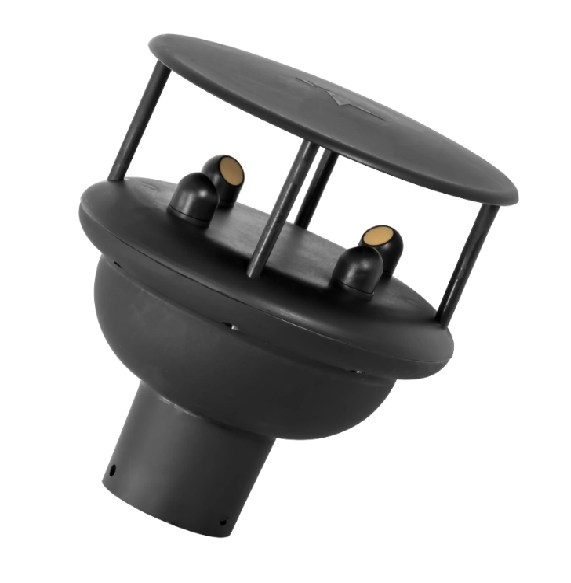

PCE WS US2 エアフローメーター (0 ~ 15 km/h; 15 ~ 120 km/h; 120 ~ 160 km/h)

Speed

Measurement range up to:  0 ... 15 km/h

Resolution:  1 km/h

Accuracy:  0.5 km/h

Speed

Measurement range up to: 15 ... 120 km/h

Resolution:  1 km/h

Accuracy:  3 % of Rd

Speed

Measurement range up to:  120 ... 160 km/h

Resolution:  1 km/h

Accuracy:  5 % of Rd

Wind direction

Measurement range up to:  0 ... 359 °

Resolution:  1 °

Accuracy:  3 °

General technical data

Measuring functions:  Flow velocity

Connections:  M12 4-pole

Display type:  without display

Interface:  RS485

Sensor:  Ultrasound

Housing:  PA (polyamide)

Protection class (device):  IP65

Power supply:  9 ... 30 V DC

Weight:  400 g

Operating conditions:  -30 ... 70 °C , 0 ... 100 % RH

Storage conditions:  -35 ... 80 °C , 0 ... 100 % RH

Dimensions ( H x D ):  162 x 143 mm

Delivery Scope

1 x Airflow Meter PCE-WS US2

1 x 5m cable with 4-pin M12 plug

1 x User manual

Datasheet
