Contril unit: LCD touch screen
Output voltage (Open Circuit) : 0.5KV~12KV ±5% (customizable)
Frontier time: 1.2μs ±30%
Half-value time: 50μs ±20%
Output polarity: positive, negative, positive/negative
automatically
Output impedance: 2Ω,500Ω±10%; 12Ω,500Ω±10% (customizable)
Number of test times: 1~9999
Surge interval: 3~999s
Working conditions: 15℃~35℃ (temperature), 10%~75% (humidity)
Working power: AC220V±10%, 50/60Hz
Dimension: W470mm*H260mm*D500mm
Weight: 35kg

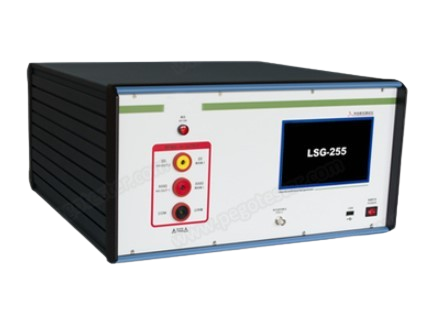

The imuplse voltage generator also be called as high voltage surge generator. This equipment can meet the test requirements of IEC60225-5, IEC60065, IEC60950, IEC60335-1, GB14711 and etc.. The Impulse test is a destructive test to assess the insulating performace of electrical and electronic appliance, like small power motor, household appliance, relay and etc.. The generator can generate a no-load wave shape conresponding to the 1.2/50ms standard impulse specified in IEC 61180-1. The test voltage and output impedance can be customized as user's test requirements.
