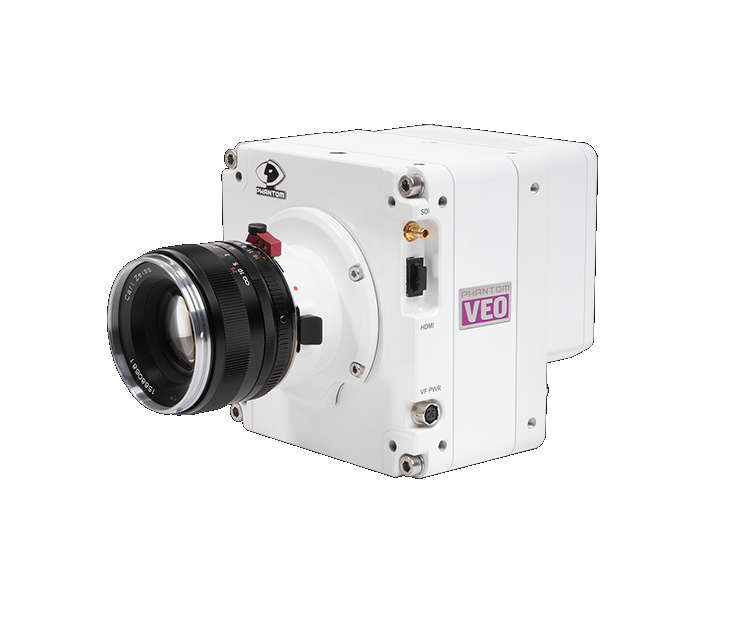

PHANTOM VEO640 High-Speed Camera (2560 x 1600 pixel; Basic, Color 72Gb 12-Bit, 1Us)

Throughput/Speed

- 6 Gpx/second

- Max speed at full resolution of 2560 x 1600 is 1400 fps

- Speed at 1920 x 1080 is 2800 fps

- Max speed at reduced resolution of 128 x 4 is 290000 fps

- Max speed of 640-E225 model is 225000 fps

- Min frame rate of 24 fps

Sensor Specifications

- CMOS sensor

- 2560 x 1600 pixels

- 10 µm pixel size

- 12-bit depth

- TE cooled

- CAR in 128 x 4 increments

- EMVA 1288 measurements at 532nm

     Quantum Efficiency: 60.2% mono; 43.6% color

     Max. SNR: 41.6 dB

     AST (p) 40.4 mono; 54.1 color

     Saturation Capacity (e-): 14512 mono; 14335 color

     Temporal Dark Noise: 23.8 e-

     Dynamic Range: 55.5 dB

Exposure

- 1 µs minimum exposure

- Global electronic shutter

- Exposure Index (E.I.) for controlling apparent ISO

- Extreme Dynamic Range (EDR)

- Auto Exposure

- Shutter Off mode for PIV

Memory

- 18 GB, 36 GB, 72 GB high-speed internal RAM

- On-board removable CFast 2.0 cards (S-models) up to 512GB

Power

- 100 - 240 VAC, 16-32 VDC via primary power input.

- 80 Watt 24V power supply included

- Secondary power input, down to 12V via capture port on S-model cameras

For more details, please see Datasheet
