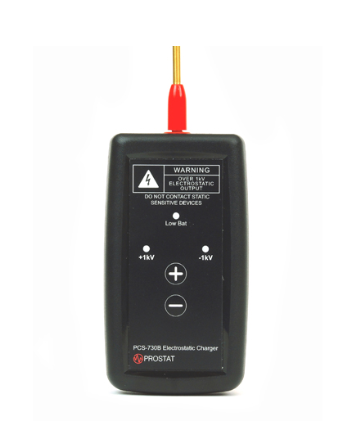

PROSTAT PCS-730B 静電チャージャー

Performance

Output: ±1,250 ±5% volts DC

Current limited to less than 1 microamp

Output Connector: Female banana jack provided with mating contact rod

Charging Speed: Charges from zero to over ±1000 volts in 3 seconds at ambient conditions

Power

Input: 9 VDC alkaline battery (included)

Battery Life: Minimum of 28 hours (of continuous use)

Approximately: 20,000 charges of either polarity

Grounding: 10mm female snap fastener on rear of case

Environment

Operating Temperature: 10°C to 30°C (50°F to 80°F)

Operating Relative Humidity: 0% – 80%, non-condensing

Operating Altitude: 2000 m

Physical Specifications

Electrostatic Charger: 2.85 cm H x 6.12 cm W x 12.65 cm L/ 1.12” H x 2.41” W x 4.98” L

Charging Rod Length: 4.45cm (1.75”)

Length: with banana plug: 8.18 cm (3.22”)

Diameter: 0.154”

Weight: 147 g (5.2 oz.) with battery
