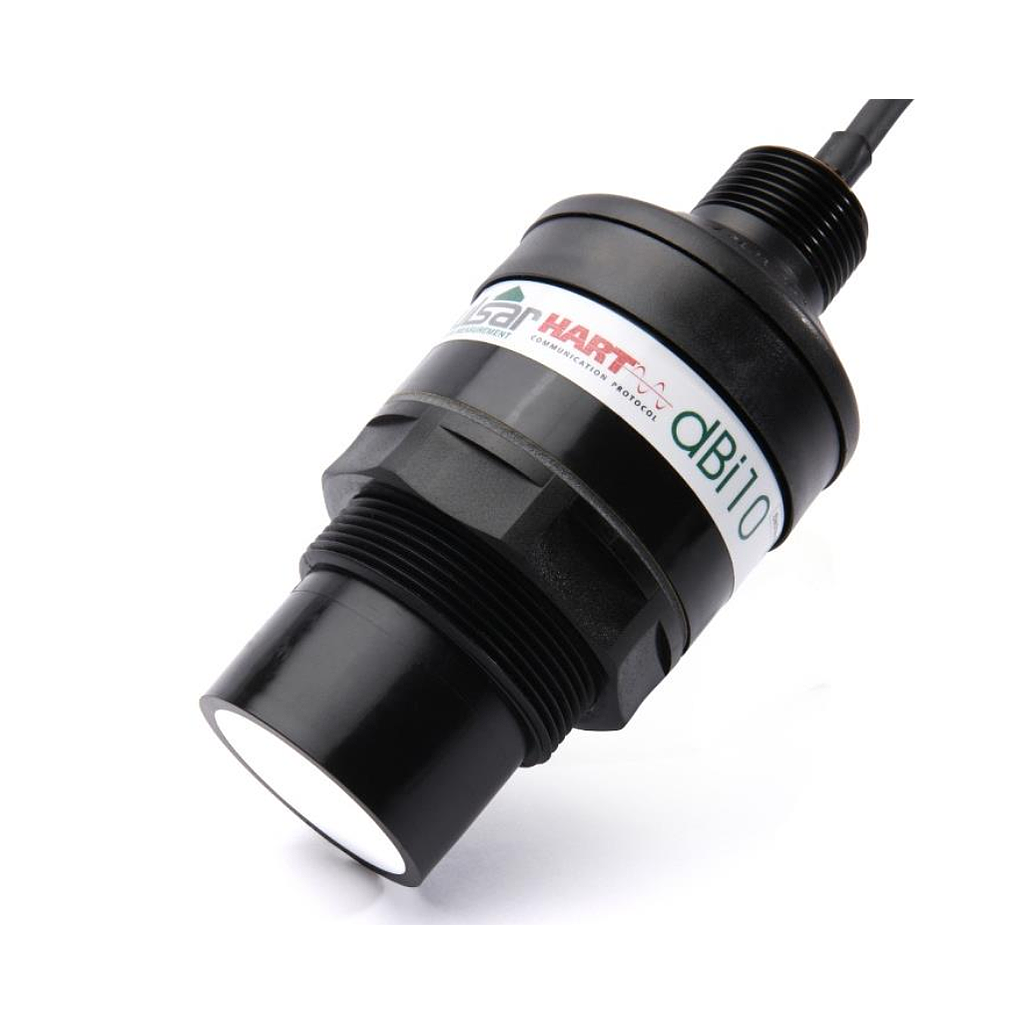

Pulsar measurement dBi10 Hart Intelligent Transducer (300 mm - 10.1 m (11.8 in - 32.8 ft))

Sensor Body Dimensions: 86 mm D x 121 mm H (3.4 in x 4.8 in)

Weight: 1.3 kg (2.9 lb)

Measurement range: 300 mm to 10.1 m (11.8 in to 32.8 ft)

Frequency: 50kHz

Beam Angle: <10°

Effective Beam Angle (using DATEM): 3°

Accuracy: 3 mm (0.1 in) up to 6m (19.7 ft) range/ 6mm (0.2 in) over 6m (19.7 ft) range

Resolution: 3 mm (0.1 in)

Sensor Body Material: Valox 357 PBT

Cable Lengths: Standard: 5 m, 10 m, 20 m, or 30 m (16.4 ft, 32.8 ft, 65.6 ft, or 98.4 ft)

Optional up to 150 m (492.1 ft) maximum (increments of 10 m (32.8 ft) only)

Mounting Connection: 1” BSP or 1” NPT

Enclosure Protection: IP68 / NEMA 6P

Max. And Min.Temperature (Electonics): -40 °C to +80 °C (-40 °F to +176 °F), options for front thread and flange mounting

Input voltage range: 10-28V DC

Output: 4-20mA output, resolution 1μa

Current Consumption: 3.8-22mA

Boot Time:

From power-up to stable reading:

Cold boot = 8 seconds,

Warm boot (within 12 hours from last start-up) = 4 seconds

Temp. Compensation: Automatic, internal temperature sensor, ± 0.5 °C/°F

Communcations Protocol: HART 7
