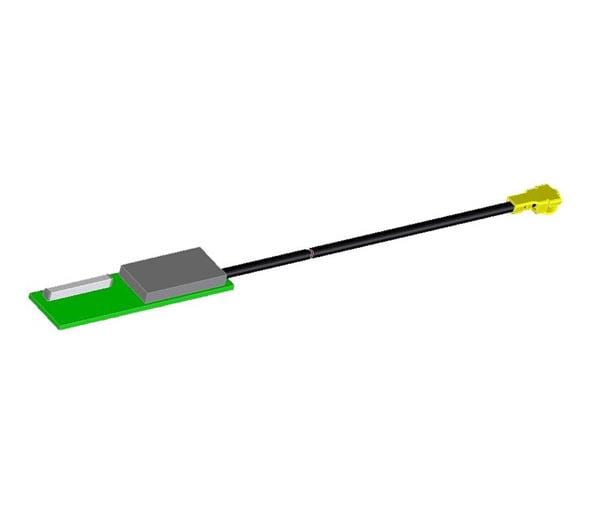

Pulse Electronics ANT8010JLC1B1516A アクティブアンテナ 75 MHz 1575-1602MHz GPS & GLONASS

Gain: 3.62 dBi, 3.71 dBi

VSWR: 2

Style: Ceramic

Width: 6 mm

Height: 1.9 mm

Length: 22 mm

Bandwidth: 75 MHz

Impedance: 50 Ohms

Technology: GPS, GLONASS

Application: Navigation Device, Telmatics Box, Tracker

Unit Weight: 11.688 g

Cable Length: 100 mm

Polarization: Linear

Mounting Style: PCB Mount

Number of Bands: 2 Band

Center Frequency: 1.575 GHz, 1.602 GHz

Mechanical Style: Chip

Maximum Frequency: 1.602 GHz

Minimum Frequency: 1.575 GHz

Termination Style: SMD/SMT

Protocol - GPS, GLONASS: GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
