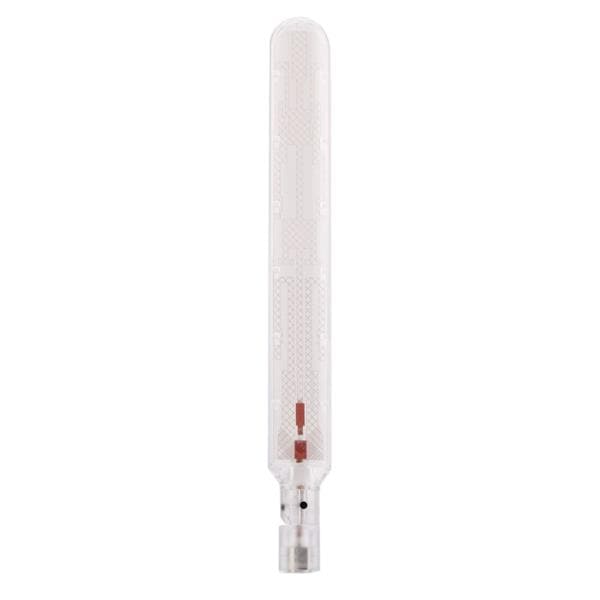

Pulse Electronics ICEBLADELS パッシブアンテナ Ant Ext ブレード SMA Mコネクタ

VSWR: 2.5:1

Style: Blade Tilt / Swivel

Width: 24.54 mm

Length: 223.48 mm

Impedance: 50 Ohms

Cable Type: 16.4 ft RG174

Application: Gateways, Set Top Boxes, M2M, IoT

Polarization: Linear

Power Rating: 3 W

Number of Bands: 2 Band

Center Frequency: 830 MHz, 2.2 GHz

Mechanical Style: Module

Maximum Frequency: 2.69 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 3G/4G, Cellular (NBIoT, LTE), DSRC
