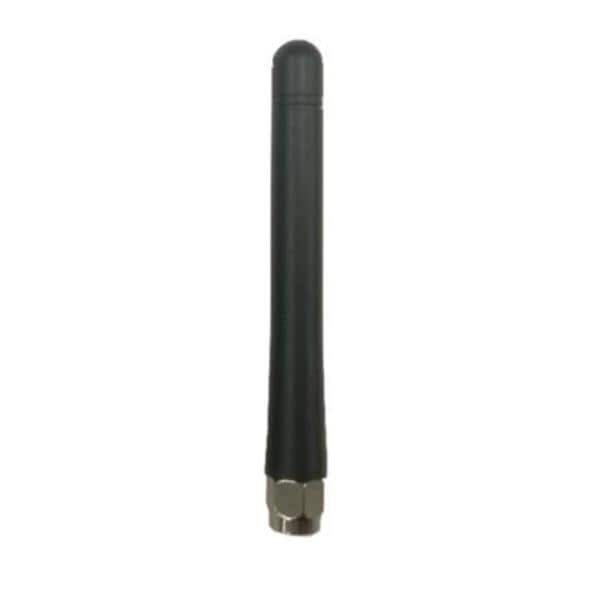

Pulse Electronics W5029RPG パッシブアンテナ拡張アンテナDB 78mm ストレートRP SMAオス

Gain: 1.8 dBi, 2.55 dBi

Style: Straight

Length: 76 mm

Diameter: 7.9 mm

IP Rating: IP65

Impedance: 50 Ohms

Application: Wireless Application, V2x Communication, Rugged Outdoor Systems, Marine, Mining, Utility, Oil/Gas Environments, Industrial Applications, Metering, Security, IoT Applications, Outdoor Networking, Data Transmission, Access Points

Power Rating: 1 W

Mounting Style: Panel Mount

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz, 5.5 GHz, 6.5 GHz

Mechanical Style: Whip

Maximum Frequency: 5.925 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, U-NII

Antenna Connector Type: RP-SMA Male

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 35 C

Protocol - Cellular, NBIoT, LTE: 5G NR, Cellular (NBIoT, LTE)

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
