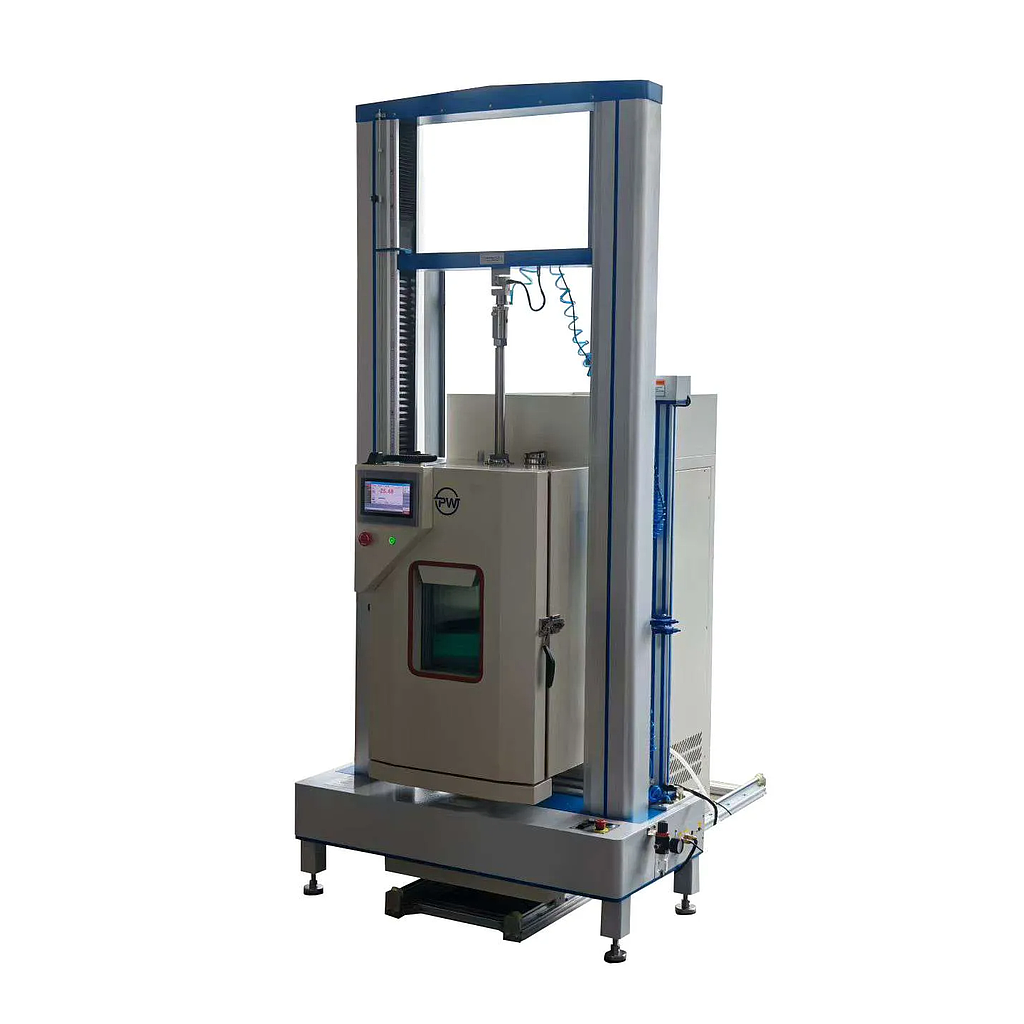

PW Instruments PW-UCD128A-70A High and Low Temperature Tensile Tester (-70~150℃,1/1.000.000)

Capacity (MAX): 10N、20N、50N、100N、200N、500N、1KN、2KN、5KN、10KN （Optional Dual-Capacity Configuration）

Unit of Force: N、kN、gf、kgf、lbf、kP、tf(SI)、tf(long)…

Unit of Length: mm、cm、Inch、m、km、um…

Force Resolution: 1/1,000,000

Accuracy: ±0.1%

Stroke Resolution: 1/1,000,000

Sensor Accuracy: 3/10,000

Test Stroke: 60 cm

Test Space: 400×400×800 mm

Speed Range: 0.01~500 mm/min (Customizable)

Temperature Range: -70~150℃

Humidity Range: 20%~98% (Optional)

Machine Dimensions (W×D×H): 1300×2300×2800 mm

Machine Net Weight: 220 KG

PRODUCTS DETAILS

Widely used for polymer materials, die-cutting materials, adhesives, adhesive tapes, films and other products and semi-finished products of -40 ℃ ~ 150 ℃ to complete 90 ° or 180 ° peel test, tensile test, to understand the mechanical test of materials in different temperature range as a reference of material properties, the machine occupies little space and has good operability.
