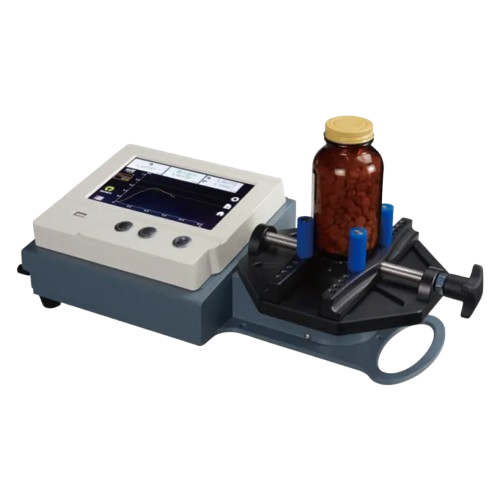

PW Instruments PW-UTM-T1 Digital Bottle Cap Torque Tester (0~10N-m, 0~100kgf-cm, 0~90lbf-in)

Measuring range: 0~10N-m, 0~100kgf-cm, 0~90lbf-in (other capacities are optional)

Display resolution: 0.001Nm

0.01kgf-cm

0.01lb-in

Vessel Diameter: Ø10~190mm

Measuring unit: Nm, mN-m, N-cm, kgf-cm, gf-cm ,lbf-ft, lbf-in, ozf-in

Test analysis: Maximum torque value, first peak value, second peak value (forward and reverse)

Taking point ratio:1200Hz

Precision:±1% of maximum capacity

Overload: 150% of maximum capacity

Machine power supply: single-phase 100V~240V

Machine size: 45x19x13.6cm

Machine weight: 5.6kg

PRODUCTS DETAILS

The bottle cap torque tester is a versatile measuring tool designed to test different types of bottle lid torque. It is primarily used for testing and calibrating tightening force, conducting torsional destructive testing of parts, and more. This tool finds extensive use in electric, light industry, machinery manufacturing, research institutions, and other fields.
