PW Instruments PWC-1.5-10 Muffle Furnace (100°C ~ 1000°C,1.5 kW)

Temperature Range: 100°C to 1000°C

Temperature Fluctuation: ±1°C

Display Precision: 1°C

Chamber Dimensions: 165 mm × 120 mm × 105 mm

External Dimensions: 350 mm × 260 mm × 430 mm

Heating Rate: ≤100°C/min (adjustable to any speed below 100°C per minute)

Total Power: 1.5 kW

Power Supply: 220 V, 50 Hz

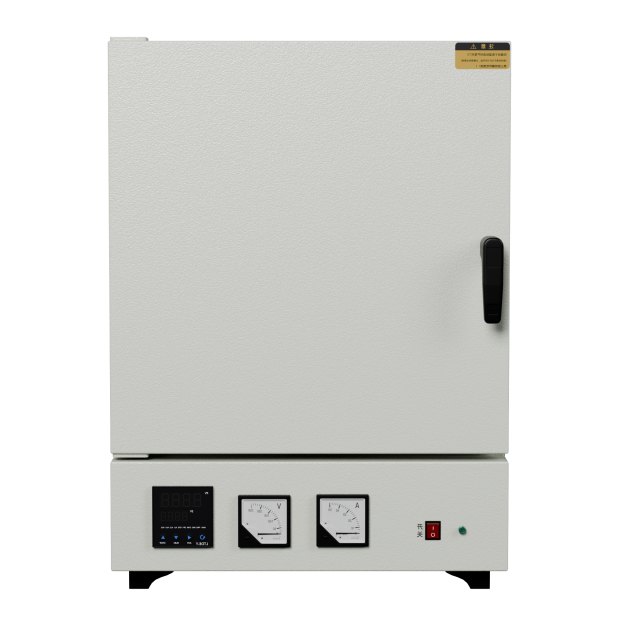

PW Series All-in-One Programmable Heating Muffle Furnace

All-in-one programmable heating muffle furnace ( PWC-1.5-10), features a ceramic fiber inner lining and high-temperature furnace wire heating elements. It is energy-efficient, consuming only one-third of the energy of a conventional high-temperature furnace. The furnace heats up quickly, with the ability to reach 1000°C within 10 minutes and maintain precise temperature control with zero error. The outer shell is made of cold-rolled steel with a sprayed plastic finish, making it lightweight and compact, weighing only one-fifth of a traditional high-temperature furnace.

The control system of the PWC-1.5-10 furnace employs a fully automatic multi-band LTDE programmable instrument with adjustable heating rates. The PID + SSR system ensures synchronized and coordinated control, making it possible to achieve consistent and reproducible results in experiments. The furnace is equipped with automatic temperature control and time control functions, as well as a secondary over-temperature protection feature for enhanced safety. The control panel is located at the bottom of the unit, and the electrical connections between the furnace and the controller are pre-installed at the factory, allowing the device to be used immediately upon connection to a power source.

This furnace is ideal for high-temperature applications in universities, research institutions, industrial enterprises, and laboratories
