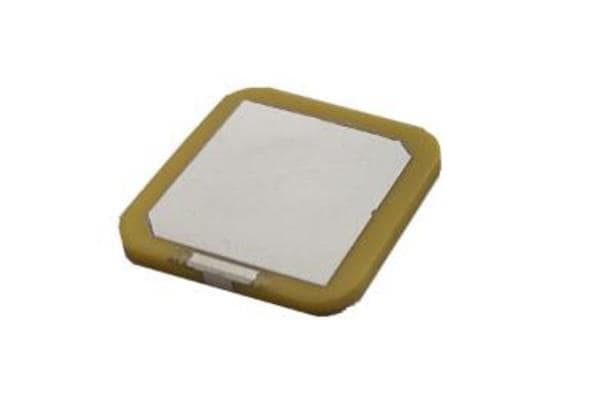

Quectel YCGS007AA セラミック埋め込み型、GNSS、1575.42-1602 MHz（±1.5 MHz）、25 mm 25 mm 2 mm

Gain: 3 dBi

VSWR: 2

Width: 25 mm

Height: 2 mm

Length: 25 mm

Impedance: 50 Ohms

Application: Wireless Applications

Polarization: RHCP

Mounting Style: PCB Mount

Frequency Range: 1.57542 GHz to 1.602 GHz

Number of Bands: 1 Band

Mechanical Style: Square

Maximum Frequency: 1.602 GHz

Minimum Frequency: 1.57542 GHz

Termination Style: SMD/SMT

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
