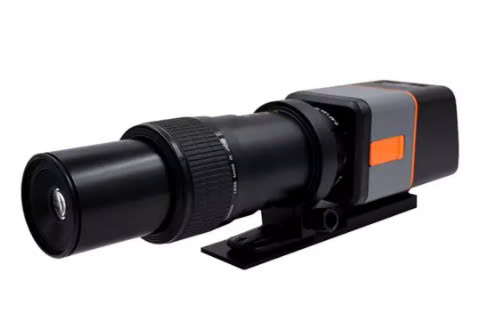

Radiant 5X Microscope Lens (6.5 x 4.3 mm; 0.74 µm / sensor pixel)

Primary Application: High-resolution measurement of small display & component features

Working Distance to Front of Lens: 40 mm

Approx. Field of View (by camera sensor size):

   2MP: 1.7 x 1.3 mm

   8MP: 3.6 x 2.7 mm

   29MP: 6.5 x 4.3 mm

   45MP: 5.4 x 3.6 mm

   61MP: 6.5 x 4.3 mm

Spatial Resolution(by camera sensor size):

   Up to 29MP: 1.10 µm / sensor pixel

   45MP: 0.64 µm / sensor pixel

   61MP: 0.74 µm / sensor pixel

Approx. Effective F-Stop: F/20

Measurement Capabilitie: Luminance, Radiance, Luminous Intensity, Radiant Intensity, Power, Radiant Flux, CIE Chromaticity Coordinates, Correlated Color Temperature (CCT)

Units:foot-lambert, cd/m², nit, W/sr/m²,foot-candles, candela, W/sr, CIE (x, y) and (u’, v’),Kelvin (CCT)
