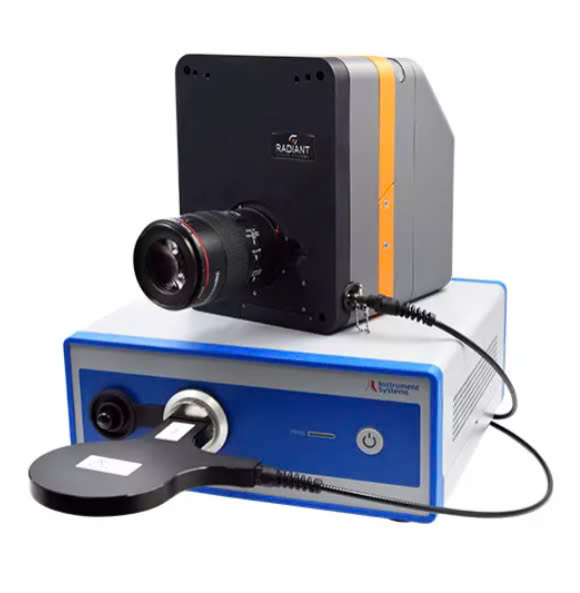

Radiant ProMetric I61-SC Imaging Colorimeter & Integrated Spectrometer (0.02 cd/m², 9568 x 6380, 61.0 MP)

Spectrometer Specifications

Luminance Minimum: 0.02 cd/m²

Spectroradiometer Absolute Accuracy: Color Coordinates (x,y) ± 0.0015 for CIE standard illuminant A

Short-term Repeatability: ± 0.1% (2 sigma)

Minimum Measurement Time: 200 ms

Measurement Spot Size: Corresponding to ~600 I61 imaging colorimeter sensor pixels (in diameter)

Communication Interface: Ethernet 100/1000

Power supply: Wide-range input 100 - 240 VAC 50/60 Hz

Dimensions (H x W x D): 144 mm x 341 mm x 359 mm

Weight: 9 kg

Imaging System Specifications

 Sensor Pixel Resolution: 9568 x 6380

Sensor Megapixels: 61.0

Sensor Type: CMOS

System Dynamic Range (single exposure, per pixel): 76 dB (1 x 1 binning)

Luminance (Minimum)*: 0.0005 cd/m² Limit of Detection

0.0010 cd/m² @ SNR = 60

0.0015 cd/m² @ SNR = 100

Luminance (Maximum): 10¹⁰ cd/m² with optional ND filters

Field of View (Full Angle, H x V degrees): 50 mm 40° x 28°/ 100 mm macro 20° x 14°

Minimum Measurement Time***: 0.6 sec - photopic/ 1.8 sec - color

Communication Interface: 10 Gigabit Ethernet (10 GigE)
