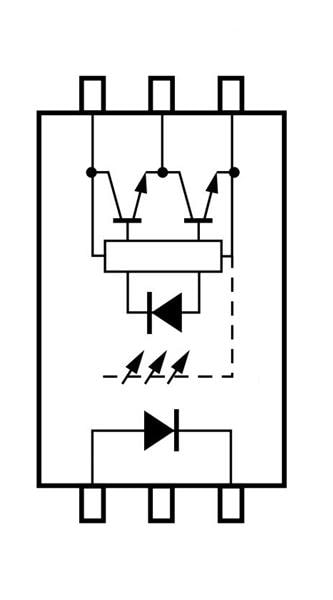

Renesas Electronics PS9306L-E3-AX 光結合アイソレータ ハイスピードオプトカプラ 6ピン SDIP

Width: mm

Height: mm

Length: mm

Fall Time: 50 ns

Rise Time: 50 ns

Output Type: Photo IC

Mounting Style: SMD/SMT

Isolation Voltage: 5000 Vrms

Number of Channels: 1 Channel

If - Forward Current: 10 mA

Vf - Forward Voltage: 1.56 V

Vr - Reverse Voltage: 5 V

Pd - Power Dissipation: 45 mW, 250 mW

Propagation Delay - Max: 0.4 us

Maximum Operating Temperature: + 110 C

Minimum Operating Temperature: - 40 C

Maximum Continuous Output Current: 600 mA
