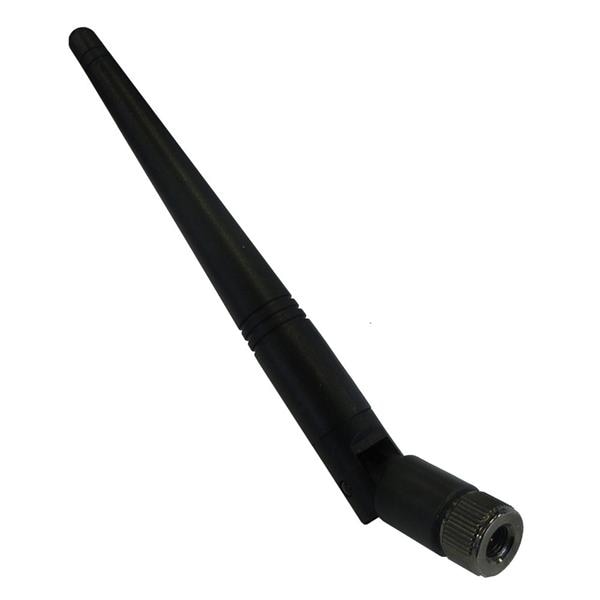

RF Solutions FLEXI-SMA90-868 パッシブアンテナ 868MHz、フレキシブル1/4波ホイップ、SMAヒンジ

VSWR: 2.0

Style: Tilt/Swivel

Width: 31 mm

Height: 4 mm

Length: 107.5 mm

Diameter: 12.5 mm

Impedance: 50 Ohms

Wavelength: 1/4 Wave

Application: General Low Power Radio, M2M, Telemetry

Unit Weight: 21 g

Mounting Style: Panel Mount

Number of Bands: 1 Band

Center Frequency: 868 MHz

Mechanical Style: Whip

Maximum Frequency: 868 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: LoRaWAN, SigFox

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
