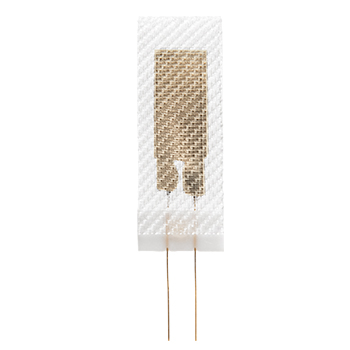

Rotronic HYGROMER HH1-SK Chemical Sterilization Humidity Sensor (0…100 %rh / -50...100 °C)

Capacity: 200 pF ±40 pF

Humidity operating range :0…100 %rh

Temperature operating: -50...100 °C

Accuracy at 23°C at optimal characteristic curve: ±1.5 rh

Hysteresis (4 hours each at 15 %rh - 90 %rh - 15 %rh): <1.0 %rh

Response time: <10 seconds (t63, 23 °C and 1 m/sec. wind speed)

Long-term stability: <1 %rh / year

Uncompensated temperature deviation: Approximately -0.15 %rh / °C between 30…90 %rh

Frequency range: 1...50 kHz

Max. Voltage: ±12 VDC

Datasheet
