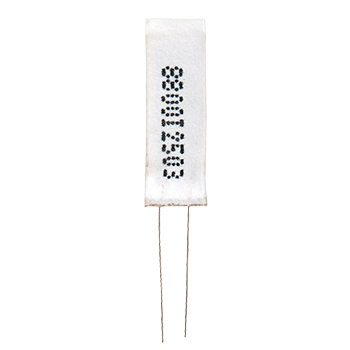

Rotronic HYGROMER IN-1 Industrial Temperature Humidity Sensor (0…100 %rh / -50…170 °C)

Capacity: 220 pF ±50 pF

Humidity operating range: 0…100 %rh

Temperature operating: -50…170 °C

Accuracy at 23°C at optimal

characteristic curve: ±1.0 rh

Hysteresis (4 hours each at 15 %rh - 90 %rh - 15 %rh): <0.5 %rh

Response time: <15 seconds (t63, 23 °C and 1 m/sec.wind speed)

Long-term stability: <1 %rh / year

Uncompensated temperature deviation: Approximately -0.15 %rh / °C between 30…90 %rh

Frequency range: 5…50 kHz

Max. Voltage: ±12 VDC

Datasheet
