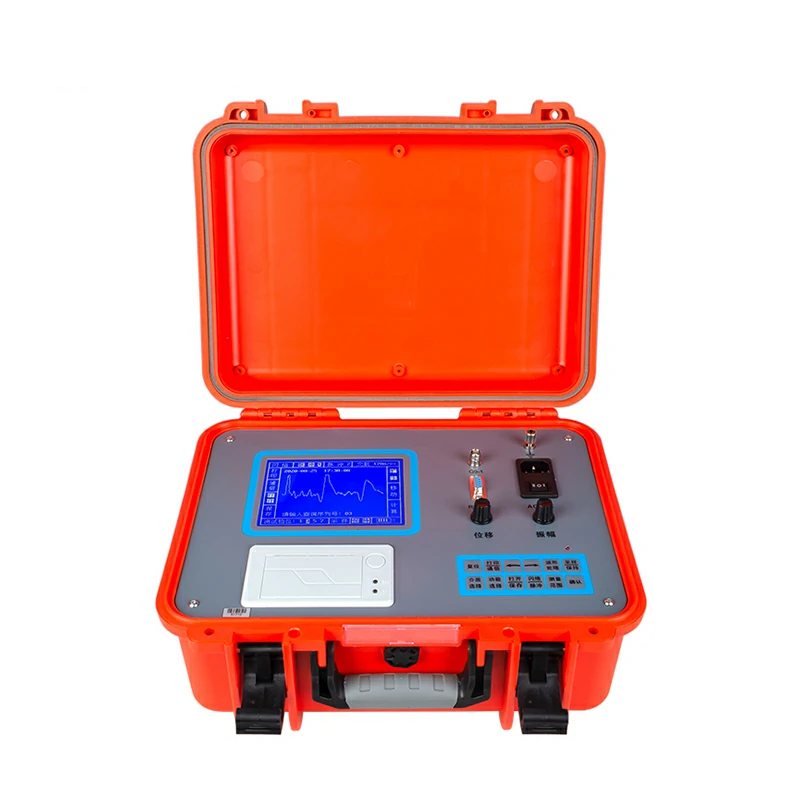

Run Test RUN-CFL01B Portable Integration Underground Cable Fault Distance Locator (100Vp-p)

Pulse amplitude: 100Vp-p

Pulse width: 0.1uS and 2uS

Measuring distance: Smax：60Km , Smin:15m

inaccuracy: Absolute error: ±10m, relative error: ±1%

display: 5.7-inch LCD

Short circuit current: 0 ～300mA

Power supply: Lithium battery 6 hours continuous working, AC power

Sampling rate: 100MHz

Best resolution: 0.5m（100m/us）

Measuring method: Flashover sampling, low-voltage pulse sampling

Burn-through power: 0～1225J

Features about the Tdr Cable Fault Locator

1.7-inch LCD, field angle > 160o

2.single-chip centralized control, key operation mode, strong anti-interference ability

3.Distance, speed and resistance measurement.

4.Automatic continuous sampling without missing a discharge waveform

5.Built-in micro-printer

6.Automatic analysis of the fault distance

7.Fully automatic continuous sampling, never miss any discharge waveform
