Run Test RUN-SF61004J Automatic Sf6 Gas Density Switches Meter Relay Calibrator (0 ~ 100%)

Measurement range: 0 ~ 100% (SF6 percentage)

Measurement accuracy: ± 0.1 ℃ (within 90% ~ 100% range)

Resolution: 0.0001

Sampling flow: 0.5 ~ 0.8l/min

Response time: 15s (90%)

Output interface: USB2.0 specification

Overall dimension of accessory box: 360mm long × 250mm wide × Height 110mm

Working environment: temperature - 10 ~ 50 ℃ (the best operating temperature is 5 ~ 50 ℃)

Instrument weight: about 4.5kg

Charging voltage: 100 ~ 240VAC, 50 / 60Hz

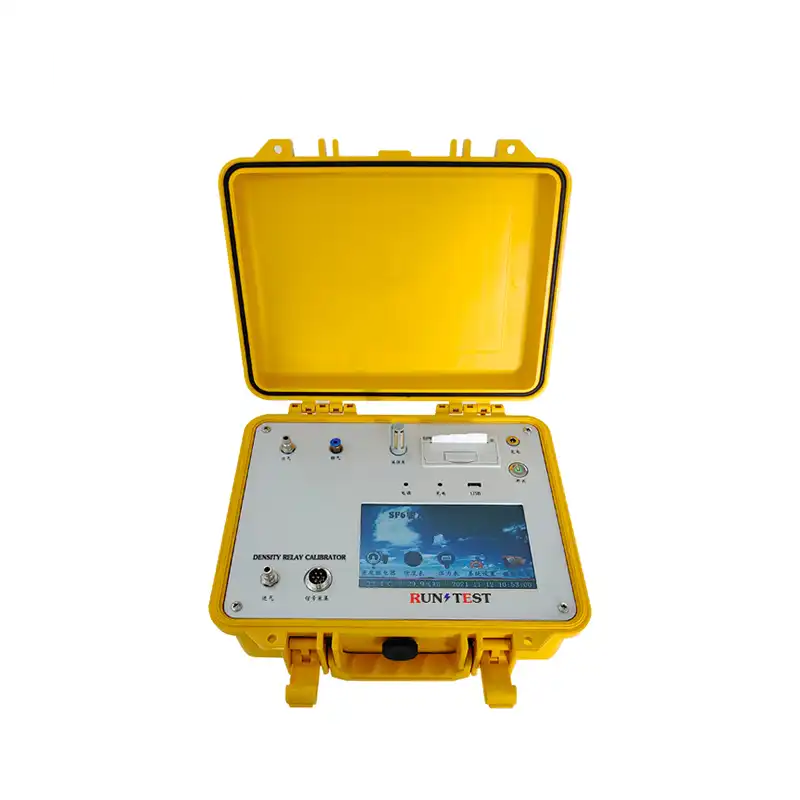

Automatic Sf6 Gas Density Switches Meter Relay Calibrator

The Sf6 Density Relay Calibrator adopts 7.0 inch color LCD touch screen for human-computer interaction, which is more convenient to operate. Built in high-capacity rechargeable lithium battery pack provides ultra long standby time. The standard USB interface is configured, and the historical data can be exported to the USB flash disk through the interface.

See our Sf6 Analyzer Catalog for more.

Sf6 Density Relay Tester Main features

1)Portable design, lighter instrument, easy to carry and use.

2)It adopts large capacity design and can store up to 100 groups of test data.

3)Built in 4400mAh rechargeable lithium battery, sufficient at one time and can work continuously for 10 hours.

4)Real time curve tracking, the change trend of purity percentage is clear and intuitive.
