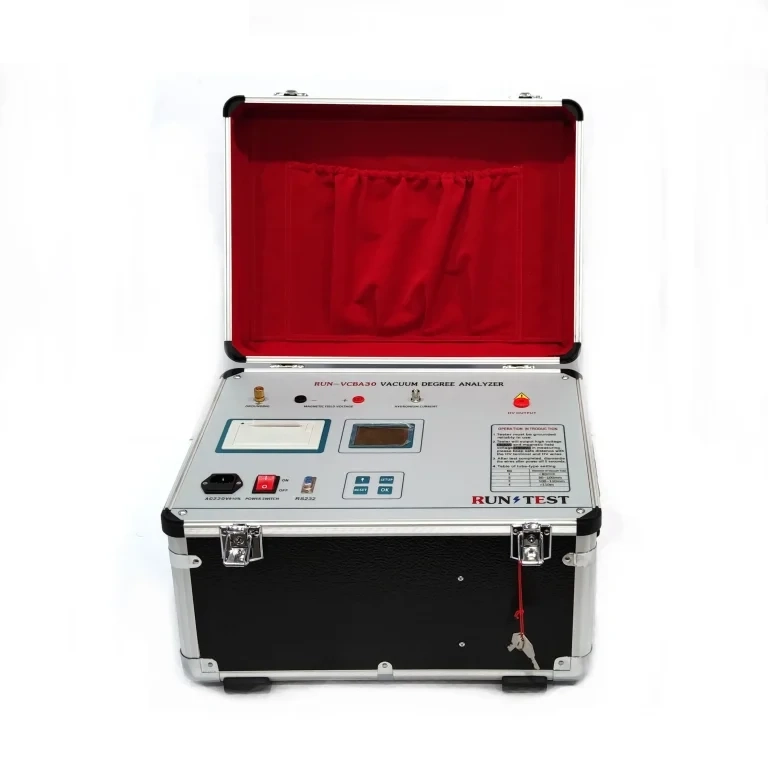

Run Test RUN-VCBA30 Switch Vacuity Test Kit Vacuum Interrupter Tester Vcb Vacuum Degree Test Equipment (10⁻⁵～10⁻¹ Pa)

Power supply: AC220V±15%,50Hz

Testing range: 10-4～10-1Pa

Electric field voltage: 20kV

Magnetic field voltage: 1600V

Accuracy: 5%

Operating condition: -10°C～40°C

Size: 460mm×335mm×330mm

Weight: 12kg

Application range

This instrument is a multi-purpose machine, which can measure many kinds of vacuum switches

Measurement range

10-5～10-1 Pa

Accuracy of measurement

10-5～10-4 Pa，10%

10-4～10-3 Pa，10%

10-3～10-2 Pa，10%

10-2～10-1 Pa，10%

Vacuum Switch Interrupter Vacuity Tester for Breaker Vacuum Degree Test

The most prominent feature of this instrument ( vacuum tester) is to use the new excitation coils and data processing methods to achieve the non-demolition measurement of vacuum.

The product has many features, such as compact structure, portable model, short testing time, high reliability and stability and accuracy, perfect function and so on.

With the development of the middle voltage switch without oil, the vacuum switch got the extensive expansion and applications with its special advantage. In these years, because of producing technics and using environment on the scene, some vacuum switches, within the scope of the permission process, the vacuum interrupter will leak in different degree ,some maybe leak and can't open or break normally within the life-span. In this case, vacuum switch will result in serious results. The most accident vacuum switch happened by this reason. Thus, it is essential for the vacuum switch to strengthen the test of vacuum degree periodically or randomly.

The traditional testing method is the withstand voltage method, namely ,let the vacuum switch to be open status and add the certain voltage on the moving contact, then test the leakage current and predict the quality of vacuum tube. This kind of Circuit Breaker Test has the advantage of simple operation, but it can only judge the quality of vacuum tube, if the vacuum degree at 10  O Pa, it can't be distinguished accurately, so it can't judge the development trend of the leakiness.( namely the same vacuum switch compare to know how many leakiness of degree ).

Features for this Vacuum Switch Vacuity Tester

1. Test quantificational vacuum degree of interrupter for many types of vacuum switch.

2. No need to disassemble the vacuum switch while testing

3. Accurate and reliable testing results;

4. English characters displayed by the LCD, simple operation

5. Testing data Can be saved and printed and viewed

6. The instrument can connect to the PC with the RS232 port in order to download the curve of vacuum degree-ion current and estimate the life-span etc.

7. Light weight and portable
