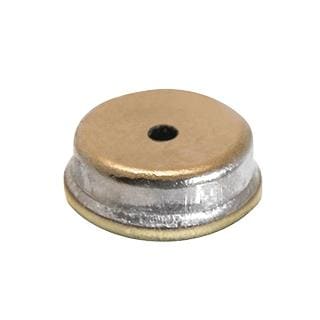

Same Sky (formerly CUI Devices) CMM-3312AT-44308-TR MEMSマイクロフォン MEMsマイクロフォン 3.3x0.95mm 2Vdc SMT

Shape: Round

Impedance: 300 Ohms

Port Type: Top

Tolerance: 3 dB

Dimensions: 3.3 mm x 1.2 mm

Output Type: Analog

Sensitivity: - 44 dB

Unit Weight: 23 mg

Mounting Style: SMD/SMT

Frequency Range: 100 Hz to 10 kHz

Termination Style: SMD/SMT

Sound Pressure Level: 105 dB

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.6 V

Directional Properties: Omnidirectional

Operating Supply Current: 80 uA

Operating Supply Voltage: 2 V

SNR - Signal to Noise Ratio: 58 dBA

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
