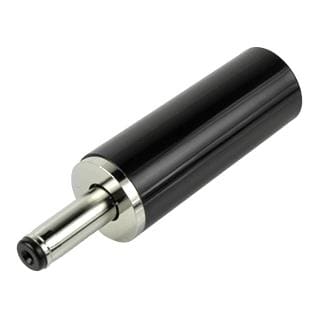

Same Sky (formerly CUI Devices) PP3-017 プラグ 電源プラグ ケーブル取付 0.9x3.2x9mm

Unit Weight: 3.179 g

Connector Type: Plug

Current Rating: 2 A

Mounting Angle: Straight

Mounting Style: Cable

Voltage Rating: 20 VDC

Contact Plating: Nickel

Contact Material: Phosphor Bronze

Housing Material: Polyoxymethylene (POM)

Termination Style: Solder Lug

Flammability Rating: UL 94 HB

Insulation Resistance: 100 MOhms

Inside Contact Diameter: 0.9 mm

Outside Contact Diameter: 3.2 mm

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
