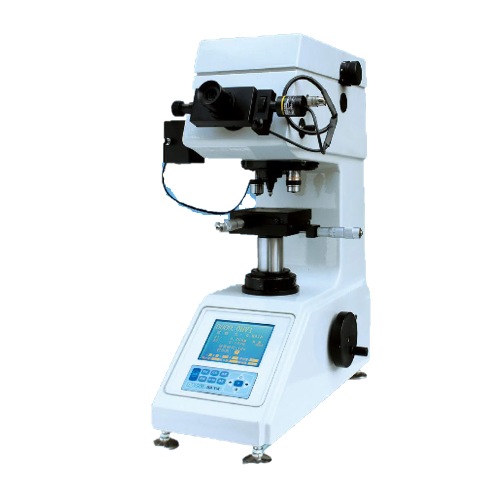

Samyon 310HVS-5 デジタルビッカース硬度計 (5-3000HV)

Feature & Use:

 Automatic turret shifting between penetrator and objective lens, RS232 data interface, built-in printer

 Hardness conversion between different hardness scales

 Automatic testing process

 Knoop indenter is optional for Knoop hardness testing

 Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384

 It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.

Specifications：

   Measuring range: 5-3000HV

   Test force:  1.961, 2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03N

                     (0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5kgf)

   Hardness scale: HV0.2, HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5

   Measuring accuracy of micrometer: ±0.2μm

   Resolution of micrometer: 0.01μm

   Test force dwelling time: 5~99 seconds (1 second for incremental quantity)

   Optical system:

   Objective lens: 10X (for observation), 40X (for measurement)

   Ocular lens: 10X

   Total magnification: 100X (for observation), 400X (for measurement)

   Range of measurement: 800um

   Max. Height of specimen: 70mm

   Depth of throat: 110mm

   Size of XY coordinate worktable: 100×100mm

   Travel of XY coordinate worktable: 25×25mm

   Resolution of XY coordinate worktable: 0.01um

   Optical source: 12V/20W

   Language: Chinese/English

   Power supply: 220V/110V, 50Hz/60Hz

   Power consumption: ≤50W

   Overall dimensions: 320×470×560mm

   Weight: 58 kg

Standard accessories：

   Coordinate anvil: 1 pc

   Thin shaft anvil (Ø0.3- Ø5mm): 1 pc.

   Thin plate anvil: 1 pc.

   Flat nose pliers: 1 pc.

   Large V-notch anvil: 1 pc.

   Small V-notch anvil: 1 pc.

   Diamond pyramid penetrator: 1 pc.

   Vickers standardized block: 2 pcs.

   Micro-Vickers standardized block: 1 pc.

Optional accessories：

   RS232 software

   Knoop penetrator

   SP-5 Vickers Video measuring apparatus

   CCD camera and image processing system
