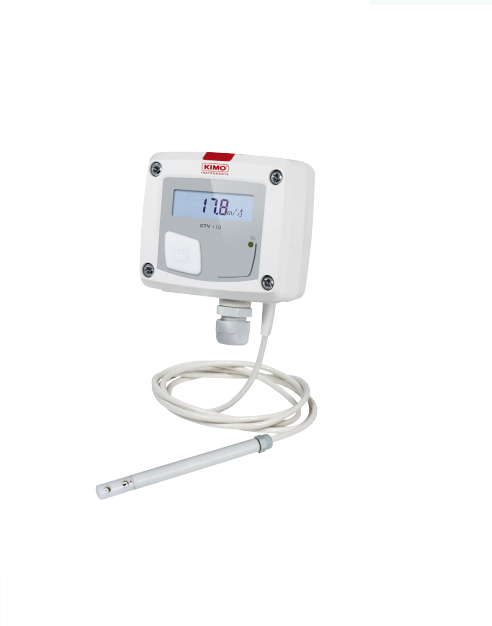

Sauermann CTV110-AOD150 Air Velocity And Temperature Transmitter

Power supply / Output: Active – 24 Vac/Vdc – 4-20 mA

Display: with display

Probe:  Remote

Probe length: 150 mm

Temperature

Measuring range: From 0 to 50 °C

Accuracy: ±0.3% of reading ±0.25 °C

Unit of measurement: °C, °F

Response time: 1/e (63%) 5 s

Type of sensor: Pt100 1/3 DIN

Resolution: 0.1 °C

Type of fluid: Air and neutral gases

Outputs settings: From -20 to +80 °C, from -50 to +50 °C, from 0 to +100 °C and from 0 to +200 °C

Air velocity

Measuring ranges: From 0 to 30 m/s

Accuracy:

From 0 to 3 m/s: ±3% of reading ±0.05 m/s

From 3 to 30 m/s: ±3% of reading ±0.2 m/s

Unit of measurement: m/s and fpm

Response time: 1/e (63%) 2 s

Type of sensor: Hotwire

Resolution:

From 0 to 3 m/s: 0.01 m/s

From 3 to 30 m/s: 0.1 m/s

Type of fluid: Filtered air

Outputs settings: From 0 to 5m/s, from 0 to 10 m/s, from 0 to 15 m/s and from 0 to 20 m/s
